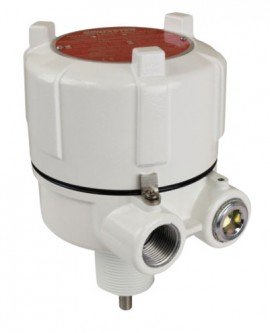

Mounts on top or side, this standard rotary point level indicator alerts when bins are nearly full or empty, removing the hassle of climbing bins. Collapsible paddles for light to heavy materials turn until it is stopped by material and activates a relay switch; comes in 24 V DC.
Mounts on top or side, this standard rotary point level indicator alerts when bins are nearly full or empty, removing the hassle of climbing bins. Collapsible paddles for light to heavy materials turn until it is stopped by material and activates a relay switch; comes in 24 V DC.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
Features
Applications
| Means of Measurement | Rotary Paddle Measurement Type: Point Level |
| Medium | Solids |
| Voltage | 24 V DC |
| Outputs | Relay DPDT 10 Amp - 250 V AC maximum |
| Temperature | Ambient: -40 to 185°F (-40 to 85°C) Process: Up to 400°F (204°C) |
| Approvals | CSA/US Class I, Groups C & D and Class II, Groups E, F & G, CSA Class II, Groups E, F & G, Ex II 2G c 1/2D c Ex d IIB T4 Gb Ex tb IIIC T130C Db (Ta = -20C to +85C) |
| Enclosure | Type: NEMA 4X, NEMA 5, NEMA 7, NEMA 9, NEMA 12 Material: Die cast aluminum |
| Mounting | 1.25" NPT |
| Conduit Entry | 0.75" NPT |
| Means of Measurement | Rotary Paddle Measurement Type: Point Level |
| Medium | Solids |
| Voltage | 24 V DC |
| Outputs | Relay DPDT 10 Amp - 250 V AC maximum |
| Temperature | Ambient: -40 to 185°F (-40 to 85°C) Process: Up to 400°F (204°C) |
| Approvals | CSA/US Class I, Groups C & D and Class II, Groups E, F & G, CSA Class II, Groups E, F & G, Ex II 2G c 1/2D c Ex d IIB T4 Gb Ex tb IIIC T130C Db (Ta = -20C to +85C) |
| Enclosure | Type: NEMA 4X, NEMA 5, NEMA 7, NEMA 9, NEMA 12 Material: Die cast aluminum |
| Mounting | 1.25" NPT |
| Conduit Entry | 0.75" NPT |
