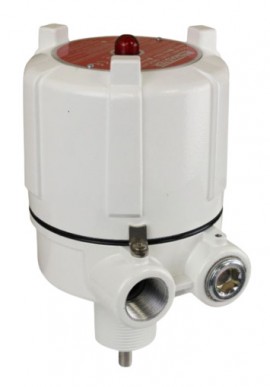

Built with a complete fail-safe system that alerts for loss of power, this rotary level indicator has a high and low point level indication for critical processes. Additional features include microprocessor-based electronics with a red LED indicator to prevent spills and shortages.
Built with a complete fail-safe system that alerts for loss of power, this rotary level indicator has a high and low point level indication for critical processes. Additional features include microprocessor-based electronics with a red LED indicator to prevent spills and shortages.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
Features
Applications
| Means of Measurement | Rotary Paddle Measurement Type: Point Level |
| Medium | Solids |
| Voltage | 12 to 24 V DC |
| Outputs | Relay DPDT 10 Amp - 250 V AC maximum |
| Temperature | Ambient: -40 to 185°F (-40 to 85°C) Process: Up to 400°F (204°C) |
| Approvals | CSA/US Class I, Groups C & D and Class II, Groups E, F & G, CSA Class II, Groups E, F & G, Ex II 2G c 1/2D c Ex d IIB T4 Gb Ex tb IIIC T130C Db (Ta = -20C to +85C) |
| Enclosure | Type: NEMA 4X, NEMA 5, NEMA 7, NEMA 9, NEMA 12 Material: Die cast aluminum |
| Mounting | 1.25" NPT |
| Conduit Entry | 0.75" NPT |
