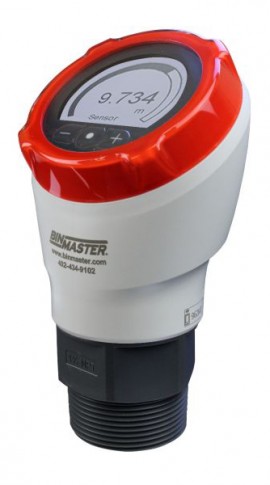

Offers an LED display on the sensor housing, this compact non-contact radar is for measuring levels in metal or plastics storage vessels and has a two-wire 4 to 20 mA output. Come with a measuring range of 49' (15 m) for liquids and an FKM seal material.
Offers an LED display on the sensor housing, this compact non-contact radar is for measuring levels in metal or plastics storage vessels and has a two-wire 4 to 20 mA output. Come with a measuring range of 49' (15 m) for liquids and an FKM seal material.
Installed using a polyurethane pigtail connection cable with FKM seal.
Features
Applications
| Measuring Principle | Radar |
| Measuring Range | 49’ (15 m) liquids 24’ (7.3 m) solids |
| Accuracy | ≤0.08" (2 mm) |
| Frequency | 80 GHz |
| Beam Angle | 8° |
| Voltage | 12 to 35 VDC |
| Output | 2-wire 4 to 20 mA |
| Mounting | 1.5" threaded NPT, 1.5" threaded straight |
| Connection | One ½" NPT without plug in either opening |
| Display | LED |
| Process Pressure | -14.5 to 43.51 psi (-1 to 3 bar/-100 to 300 kPa) |
| Process Temperature | -40 to 176°F (-40 to 80°C) |
