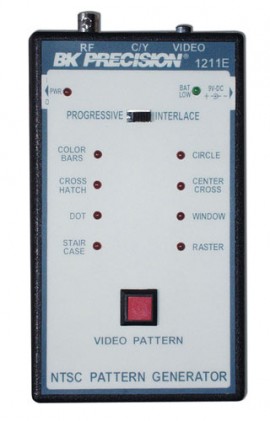

Portable, this handheld NTSC generator is powered by a 9 V battery or AC adapter, providing NTSC color bars, crosshatch, dot, staircase, circle, center cross, windows, and a full range of color raster patterns. Available outputs include a composite video via RCA connector, an RF output BNC connector, and more.
Portable, this handheld NTSC generator is powered by a 9 V battery or AC adapter, providing NTSC color bars, crosshatch, dot, staircase, circle, center cross, windows, and a full range of color raster patterns. Available outputs include a composite video via RCA connector, an RF output BNC connector, and more.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Function Generators category for similar products.
Or let's do a search and help you find what you need:
Features
| Color Bars | White, Yellow, Cyan, Green, Magenta, Red, Blue, and Black |
| Chroma | Auto/Manual |
| Staircase | Linear staircase signal with 5 equal steps from black to white |
| Rasters | White, Red, Green, Blue, Yellow, Cyan, Magenta, and Black |
| Window | White window on black background |
| Convergence | 15 vertical x 11 horizontal white dots on black raster white lines on black raster Centering Box on screen Circle with 1x1 crosshatch |
| RF Output | CH3 = 61.25 MHz, crystal controlled |
| Impedance | 75 Ω |
| Stability | 50 ppm |
| S-Video | Chrominance Output: 0.75 V p-p into 75 Ω Luminance plus Sync Output: 1V p-p into 75 Ω |
| Composite Video | 1.2 V p-p into 75 Ω |
| Power Source | 9 V battery or AC Adapter (9 V DC, 100 mA 5.5 x 2.5 mm center pin) |
| Operating Temperature | 32 to 122˚F (0 to 50˚C) |
| Dimensions | 1.5 x 3.8 x 5.7" (38 x 97 x 145 mm) |
| Weight | 9.6 oz (272 g) |
