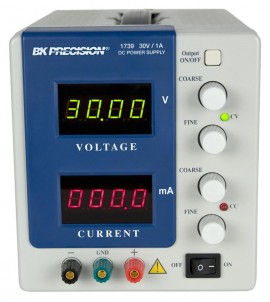

Ideal for small current applications requiring a clean and precise source, this DC power supply features excellent load regulation and low noise characteristics. In addition, two 4-digit LED displays continuously monitor the output voltage and current, and the mechanical configuration conserves bench space and allows for easy portability.
Ideal for small current applications requiring a clean and precise source, this DC power supply features excellent load regulation and low noise characteristics. In addition, two 4-digit LED displays continuously monitor the output voltage and current, and the mechanical configuration conserves bench space and allows for easy portability.
Features
Applications
| Output Ratings (32 to 104°F [0 to 40°C]) | Voltage: 0 to 30 V Current: 0 to 999.9 mA |
| Load Regulation ±(% of Output + Off Set) | Voltage: 0.04% + 1 mV Current: 0.4% + 0.1 mA |
| Line Regulation ±(% of Output + Off Set) | Voltage: 0.1% + 3 mV Current: 0.4% + 0.3 mA |
| Ripple and Noise (20 Hz to 20 MHz) | Voltage: <1 mVrms Current: ≤0.4 mArms Recovery time: ≤75 μs |
| Meter | Voltage: 10 mV (resolution); 0.5% + 2 digits (accuracy) Current: 0.1 mA (resolution); 0.5% + 5 digits (accuracy) |
| Protection | Reverse polarity, current limiting |
| Operating Environment | Temperature: 32 to 104°F (0 to 40°C) Humidity: 75% RH Temperature coefficient (32 to 95°F [0 to 35°C]) ±(％ of output + offset): 300 ppm/°C Storage temperature: 5 to 158°F (-15 to 70°C) Storage humidity: 85% RH |
| Power | Requirements: 110/220 V AC ±10%, 50/60 Hz Consumption: ≤70 VA |
| Dimensions | 5.5 x 6.2 x 12.5" (140 x 158 x 318 mm) |
| Weight | 9 lbs (4 kg) |
