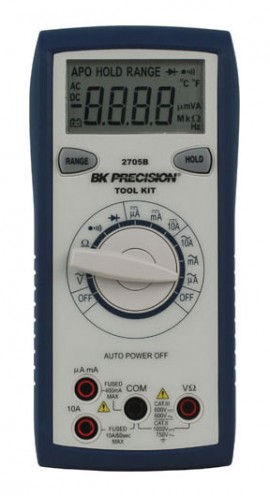

Combining performance, value, and functionality, this handheld multimeter features a 4000 count LCD that can display resistance values up to 40 MΩ. Measure up to 10 A (AC/DC) with this multimeter, which also features an auto-ranging function and an auto power-off feature, avoiding accidental battery over-consumption.
Combining performance, value, and functionality, this handheld multimeter features a 4000 count LCD that can display resistance values up to 40 MΩ. Measure up to 10 A (AC/DC) with this multimeter, which also features an auto-ranging function and an auto power-off feature, avoiding accidental battery over-consumption.
| DC Volts | |
| Ranges | 400 mV, 4 V, 40 V, 400 V, 1000 V |
| Resolution | 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V |
| Accuracy | ±(1% rdg + 2 dgts) |
| Input Impedance | 400 mV: >100 MΩ; 4 V: 10 MΩ; 40 V to1000 V: 9.1 MΩ |
| Overload Protection | 1000 VDC or 750 VAC rms |
| AC Volts (50 to 500 Hz) | |
| Ranges | 400 mV, 4 V, 40 V, 400 V, 750 V |
| Resolution | 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V |
| Accuracy | 50 to 100 Hz ±(2% rdg + 5 dgts) |
| Input Impedance | 400 mV: >100 MΩ; 4 V: 10 MΩ; 40 V to 750 V: 9.1 MΩ |
| Overload Protection | 1000 VDC or 750 VAC rms |
| DC Current | |
| Ranges | 400 uA, 4000 uA, 40 mA, 400 mA, 10 A |
| Resolution | 0.1 uA, 1 uA, 10 uA, 100 uA, 10 mA |
| Accuracy | 400 μA to 400 mA ranges: ±(2.5% rdg + 5 dgts) 10 A range: ±(3.5% rdg + 5 dgts) |
| Input Protection | 0.5 A/500 V and 10 A/600 V fast blow ceramic fuses |
| 10 A Input | 10 A for 60 seconds maximum followed by a 10 minute cooling period |
| Resistance | |
| Ranges | 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 40 MΩ |
| Resolution | 0.1 Ω, 1.0 Ω, 10 Ω, 100 Ω, 10 kΩ |
| Accuracy | 400 Ω to 400 kΩ ranges: ±(1.5% rdg + 4 dgts) 4 MΩ range: ±(2.5% rdg + 4 dgts) 40 MΩ range: ±(5% rdg + 4 dgts) |
| Open Circuit Voltage (Typical) | -0.45 VDC (-1.2 VDC on 400 Ω range |
| Overload Protection | 500 VDC/AC rms |
| Diode Test | |
| Test Current | 1 mA (typical) |
| Resolution | 10 mV |
| Accuracy | ±(3% rdg + 3 dgts) |
| Audible Indication | < 0.25 V |
| Open Circuit Voltage | 3 VDC (typical) |
| Overload Protection | 500 VDC/AC rms |
| Continuity | |
| Audible Indication | Less than 25 Ω |
| Response Time | 500 ms |
| Overload Protection | 500 VDC/AC rms |
| General Specifications | |
| Display | 3¾ digit, 4000 count LCD |
| Measurement Rate | 2 times per second |
| Auto Power Off | Approximately 10 minutes |
| Temperature | Operating: 32 to 122°F (0 to 50°C) at < 70% relative humidity Storage: -4 to 140°F (-20 to 60°C) at 0 to 80% relative humidity Coefficient: 0.1 x (specified accuracy) per °F/C. (0 to 64.4°F [0 to 18°C], 82.4 to 122°F [28 to 50°C]) |
| Power | Single standard 9 V battery, NEDA 1604, JIS 006P, IEC 6F22 |
| Battery Life | 200 hours typical |
| Dimensions | 6.49 x 3.07 x 1.67" (165 x 78 x 42.5 mm) |
| Weight | 10 oz (285 g) |
