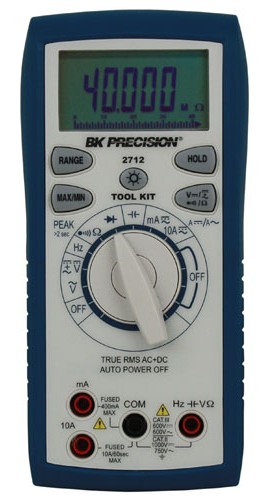

Handheld and versatile, this digital multimeter features auto-ranging True RMS technology and combines performance and functionality. With an auto power-off feature to avoid accidental battery consumption, this multimeter offers a green backlight 40,000-count LCD, allowing the meter to be used in dimly lit environments.
Handheld and versatile, this digital multimeter features auto-ranging True RMS technology and combines performance and functionality. With an auto power-off feature to avoid accidental battery consumption, this multimeter offers a green backlight 40,000-count LCD, allowing the meter to be used in dimly lit environments.
Features
| DC | |
| Volts Ranges | 400 mV, 4 V, 40 V, 400 V, 1000 V |
| Current Ranges | 40 mA, 400 mA, 10 A |
| AC | |
| Volts Ranges | 400 mv, 4 V, 40 V, 400 V, 750 V |
| Current Ranges | 660 uA, 6600 uA, 66 mA, 400 mA, 10 A |
| General Specifications | |
| Display | 3 3/4 digit, 40,000 count LCD |
| Analog Bargraph | 40 segments with measurements of 20 times per second |
| Polarity | Automatic, positive implied, negative polarity indication |
| Overrange | MSD (Most Significant Digit) blinks |
| Low Battery Indication | Battery symbol will display when battery voltage drops below operating levels |
| Measurement Rate | 2 times per second |
| Auto Power Off | Approximately 30 minutes |
| Environment | Operating: 32 to 122&Deg;F (0 to 50°C) at <70% relative humidity Storage: -4 to 140°F (-20 to 60°C) at 0 to 80% relative humidity |
| Temperature Coefficient | 0.1 x (specified accuracy) per °C. (°C to 18°C, 28°C to 50°C) |
| Power | Single standard 9 V battery, NEDA 1604, JIS 006P, IEC 6F22 |
| Battery Life | 150 hours typical |
| Dimensions | 6.49 x 3.07 x 1.67" (165 x 78 x 42.5 mm) |
| Weight | 10 oz (285 g) |
