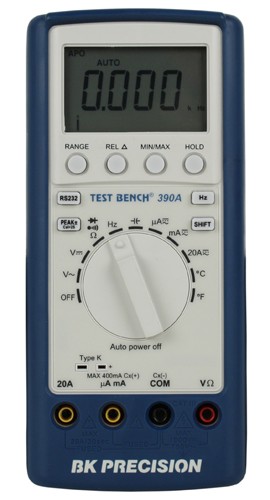

Measure at high degrees of performance with this digital multimeter, which features TRMS technology and comes in a dual-injected molding case for a better grip. With component test capabilities and a logic indicator, this multimeter can measure temperature, resistance, capacitance, frequency, and perform diode tests.
Measure at high degrees of performance with this digital multimeter, which features TRMS technology and comes in a dual-injected molding case for a better grip. With component test capabilities and a logic indicator, this multimeter can measure temperature, resistance, capacitance, frequency, and perform diode tests.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Toolbox category for similar products.
Or let's do a search and help you find what you need:
Designed to meet IEC61010 1, CATIII 600V, class2 requirements.
Features
| Volts (True RMS Reading) | |
| Ranges | DC: 400 mv, 4 V, 40 V, 400 V, 1000 V AC: 400 mv, 4 V, 40 V, 400 V, 750 V |
| Resolution | 100 µV, 1 mV, 10 mV, 100 mV, 1 V |
| Accuracy | DC: ±(0.1% rdg + 2 dgt) AC: 400mV: ±(1.2% rdg+ 5 dgt) 50 Hz to 100 Hz ±(1.0% rdg + 3 dgt) 50 Hz to 500 Hz |
| Currents (True RMS Reading) | |
| Ranges | 400 µA, 4 mA, 40 mA, 400 mA, 20 A |
| Resolution | 0.1 µA, 1 µA, 10 µA, 100 µA, 10 µA |
| Accuracy | DC: 400 µA to 400 mA: ±(1% rdg + 5dgt) 20A: ±(2% rdg + 3 dgt) AC: 400 µA to 400 mA: ±(1.5% rdg + 4 dgt) 20 A: ±(2.5% rdg + 4 dgt.) |
| Resistance | |
| Ranges | 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ |
| Resolution | 100 mΩ, 1 Ω, 10 Ω, 100 Ω, 1 kΩ, 10 kΩ |
| Accuracy | 400 Ω to 400 kΩ: ±(0.5% rdg + 4 dgt.) 4 MΩ: ±(1% rdg + 5 dgt.) 40 MΩ: ±(2% rdg + 5 dgt.) |
| General Specifications | |
| Display | 4000 count, 3 3/4 digit LCD with 41 segment analog bar graph |
| Polarity | Automatic, positive implied, negative polarity indication |
| Operating Temperature | 32 to 122°F (0 to 50˚C), 0 to 70% R.H. |
| Dimensions | 7.8 x 3.5 x 1.57" (198 x 90 x 40 mm) |
| Weight | 11.3 oz (320 g) |
| Volts (True RMS Reading) | |
| Ranges | DC: 400 mv, 4 V, 40 V, 400 V, 1000 V AC: 400 mv, 4 V, 40 V, 400 V, 750 V |
| Resolution | 100 µV, 1 mV, 10 mV, 100 mV, 1 V |
| Accuracy | DC: ±(0.1% rdg + 2 dgt) AC: 400mV: ±(1.2% rdg+ 5 dgt) 50 Hz to 100 Hz ±(1.0% rdg + 3 dgt) 50 Hz to 500 Hz |
| Currents (True RMS Reading) | |
| Ranges | 400 µA, 4 mA, 40 mA, 400 mA, 20 A |
| Resolution | 0.1 µA, 1 µA, 10 µA, 100 µA, 10 µA |
| Accuracy | DC: 400 µA to 400 mA: ±(1% rdg + 5dgt) 20A: ±(2% rdg + 3 dgt) AC: 400 µA to 400 mA: ±(1.5% rdg + 4 dgt) 20 A: ±(2.5% rdg + 4 dgt.) |
| Resistance | |
| Ranges | 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ |
| Resolution | 100 mΩ, 1 Ω, 10 Ω, 100 Ω, 1 kΩ, 10 kΩ |
| Accuracy | 400 Ω to 400 kΩ: ±(0.5% rdg + 4 dgt.) 4 MΩ: ±(1% rdg + 5 dgt.) 40 MΩ: ±(2% rdg + 5 dgt.) |
| General Specifications | |
| Display | 4000 count, 3 3/4 digit LCD with 41 segment analog bar graph |
| Polarity | Automatic, positive implied, negative polarity indication |
| Operating Temperature | 32 to 122°F (0 to 50˚C), 0 to 70% R.H. |
| Dimensions | 7.8 x 3.5 x 1.57" (198 x 90 x 40 mm) |
| Weight | 11.3 oz (320 g) |
