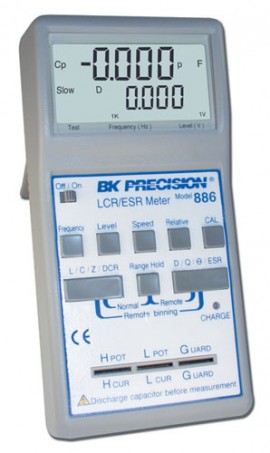

Fast, reliable, and designed for both fundamental impedance testing and component evaluation, this LCR/ESR meter features a wide range of test frequencies. With a built-in direct test fixture, you can test the lead components easily. and the optional 4-wire test clip gives a convenient connection to larger components.
Fast, reliable, and designed for both fundamental impedance testing and component evaluation, this LCR/ESR meter features a wide range of test frequencies. With a built-in direct test fixture, you can test the lead components easily. and the optional 4-wire test clip gives a convenient connection to larger components.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
| Test Signal | |
| Frequency | 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz Accuracy: ±0.1% |
| Level | 1 Vrms, 0.25 Vrms, 0.05 Vrms, 1 Vdc (for DCR) Accuracy: ±5% |
| Output Impedance | 100 Ω, ±5% |
| General Specifications | |
| Temperature | Operating: 32 to 104°F (0 to 40°C) Storage: -4 to 158°F (-20 to 70°C) |
| Relative Humidity | Up to 85% |
| Battery | Type: Ni-MH or Alkaline (2 x AA size) Charge: Constant current 150 mA approximately Operating Life: 2.5 hours typical |
| AC Operation | 110 VAC/60 Hz |
| Low Power Warning | Under 2.2 V |
| Dimensions | 6.9 x 3.4 x 1.9" (175 x 86 x 48 mm) |
| Weight | 1.1 lbs (470 g) |
| Test Signal | |
| Frequency | 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz Accuracy: ±0.1% |
| Level | 1 Vrms, 0.25 Vrms, 0.05 Vrms, 1 Vdc (for DCR) Accuracy: ±5% |
| Output Impedance | 100 Ω, ±5% |
| General Specifications | |
| Temperature | Operating: 32 to 104°F (0 to 40°C) Storage: -4 to 158°F (-20 to 70°C) |
| Relative Humidity | Up to 85% |
| Battery | Type: Ni-MH or Alkaline (2 x AA size) Charge: Constant current 150 mA approximately Operating Life: 2.5 hours typical |
| AC Operation | 110 VAC/60 Hz |
| Low Power Warning | Under 2.2 V |
| Dimensions | 6.9 x 3.4 x 1.9" (175 x 86 x 48 mm) |
| Weight | 1.1 lbs (470 g) |
