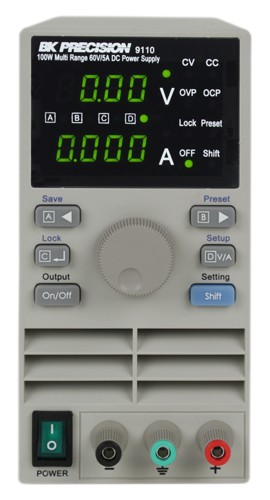

Offering an expanded choice of maximum power Volt/Amp combinations, this multi-range power supply cuts down the number of power supplies required, freeing up valuable bench space. Featuring the ability to automatically recalculate voltage/current limits, this power supply also provides 100 W of output power.
Offering an expanded choice of maximum power Volt/Amp combinations, this multi-range power supply cuts down the number of power supplies required, freeing up valuable bench space. Featuring the ability to automatically recalculate voltage/current limits, this power supply also provides 100 W of output power.
Features
| Output Ratings | Voltage: 0 to 60 V Current: 0 to 5 A |
| Maximum Power | 100 W |
| Load Regulation | Voltage: ≤ 0.01% + 3 mV Current: ≤ 0.01% + 3 mA |
| Line Regulation | Voltage: ≤ 0.01% + 3 mV Current: ≤ 0.1% + 3 mA |
| Setting Accuracy | Voltage: ≤ 0.05% + 10 mV Current: ≤ 0.2% + 2 mA |
| Display Accuracy | Voltage: ≤ 0.05% + 10 mV Current: ≤ 0.2% + 2 mA |
| Ripple | Voltage: ≤ 2 mVrms Current: ≤ 5 mArms |
| State Storage Memory | 100 groups with 4 sets of Volt/Amp memories each |
| AC Input | 99 V to 121 V or 198 V to 242 V, 47 to 63 Hz |
| Dimensions | 3.47 x 6.9 x 11.11" (88 x 175 x 282 mm) |
| Weight | 5.9 lbs (2.65 kg) |
