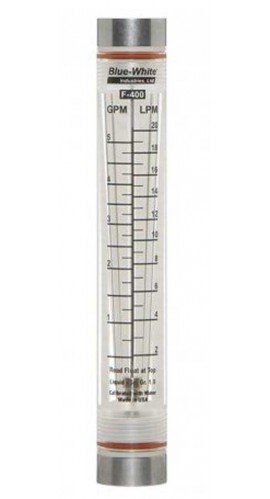

Blue-White F-40376LN-8 Acrylic Flowmeter with 316 SS Guide Rod, 0.2 to 2GPM, 1/2in Female NPT

Model: F-40376LN-8

With a liquid flow rate of 0.2 to 2GPM (1 to 7.5LPM) and a 316 stainless-steel guide rod, this acrylic flowmeter features 1/2in female NPT connections.

With a liquid flow rate of 0.2 to 2GPM (1 to 7.5LPM) and a 316 stainless-steel guide rod, this acrylic flowmeter features 1/2in female NPT connections.

Sale Price $161.02 USD
Regular Price $166.00 USD
Availability 3 to 4 Weeks
Quantity

Blue-White F-40376LN-8 Offers

This acrylic flowmeter features a white or yellow back reflector for easy reading.

Features

  • Tough machined acrylic meter body, highly polished to a clear finish
  • Direct reading permanent scale
  • F/NPT adapters with high grade Viton o-ring seals and aluminum "stress ring" thread supports
  • 316 stainless steel or Hastelloy rod guided floats
  • Acceptable in direct sunlight applications
  • All models are white except F-40250 and F-40375 which are yellow

Blue-White F-40376LN-8 Specifications

Flow Range (GPM) 0.2 to 2.0
Flow Range (LPM) 1.0 to 7.5
Pipe Size (Inch) 1/2, F/NPT
Float Material 316 SS
Meter Body Cast Acrylic Rod
Adapter Material Polypropylene
O-ring Seals Viton (Optional EP)
Guide Rod 316 SS
Max. Working Pressure 150psi (10.3 bar) @ 70°F (21°C)
Max. Fluid Temperature 150°F (65°C) @ 0psig
Full Scale Accuracy ±5%
Calibration Fluid Water, specific gravity 1.0
Scale Length 4in (10.16cm)
Environment Acceptable for direct sunlight exposure
Maximum Pressure Drop (PSI) 2
Width 1.26in (32mm)
Height 1.26in (32mm)
Length 8.19in (208mm)
Width 32.00 mm, 1.26 in Height 32.00 mm, 1.26 in Length 208.00 mm, 8.19 in Click here for complete specifications on the Blue-White F-40376LN-8

What's included with the Blue-White F-40376LN-8

  • Blue-White F-40376LN-8 Acrylic Flowmeter with 316 SS Guide Rod, 0.2 to 2GPM, 1/2in Female NPT
