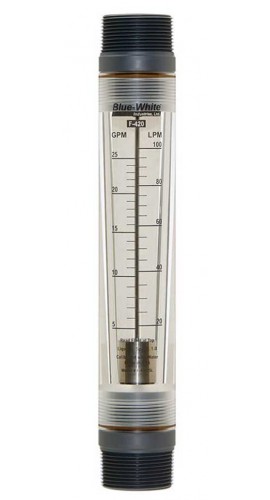

Blue-White F-42025LN Standard Series Flowmeter with 316 SS Guide Rod, 5 to 25GPM

Model: F-42025LN

Blue-White F-42025LN Standard Series Flowmeter with 316 SS Guide Rod, 5 to 25GPM-

Downloads:

More Blue-White Products

Ask an Expert

Blue-White F-42025LN Standard Series Flowmeter with 316 SS Guide Rod, 5 to 25GPM

Model: F-42025LN

Equipped with a 316 stainless-steel guide rod, this flowmeter has a 5 to 25GPM (20 to 100LPM) flow rate.

Equipped with a 316 stainless-steel guide rod, this flowmeter has a 5 to 25GPM (20 to 100LPM) flow rate.

Sale Price $458.81 USD
Regular Price $473.00 USD
Availability 2 to 3 Weeks
Quantity

Blue-White F-42025LN Offers

This flowmeter features a white back reflector for easy reading.

Features

  • Tough machined acrylic meter body, highly polished to a clear finish
  • Direct reading permanent scale
  • 1in F/NPT or 1-1/2in M/NPT adapters with high grade Viton o-ring seals
  • 316 stainless steel or Hastelloy rod guided floats
  • Acceptable in direct sunlight applications

Blue-White F-42025LN Specifications

Max. Working Pressure 130psi (8.9 bar) @ 70°F (21°C)
Max. Fluid Temperature (C) @ 0 PSI 130°F (54°C) @ 0psi
Full Scale Accuracy ±5%
Calibration Fluid Water, specific gravity 1.0
Scale Length 4in (10.16cm)
Environment Acceptable for direct sunlight exposure
Maximum Pressure Drop (PSI) 2
Click here for complete specifications on the Blue-White F-42025LN

What's included with the Blue-White F-42025LN

  • Blue-White F-42025LN Standard Series Flowmeter with 316 SS Guide Rod, 5 to 25GPM

Ask a question about Blue-White F-42025LN Standard Series Flowmeter with 316 SS Guide Rod, 5 to 25GPM

Customer Reviews for the Blue-White F-42025LN

Blue-White F-42025LN Offers

This flowmeter features a white back reflector for easy reading.

Features

  • Tough machined acrylic meter body, highly polished to a clear finish
  • Direct reading permanent scale
  • 1in F/NPT or 1-1/2in M/NPT adapters with high grade Viton o-ring seals
  • 316 stainless steel or Hastelloy rod guided floats
  • Acceptable in direct sunlight applications
Show More...

Blue-White F-42025LN Specifications

Max. Working Pressure 130psi (8.9 bar) @ 70°F (21°C)
Max. Fluid Temperature (C) @ 0 PSI 130°F (54°C) @ 0psi
Full Scale Accuracy ±5%
Calibration Fluid Water, specific gravity 1.0
Scale Length 4in (10.16cm)
Environment Acceptable for direct sunlight exposure
Maximum Pressure Drop (PSI) 2
Click here for complete specifications on the Blue-White F-42025LN

What's included with the Blue-White F-42025LN

  • Blue-White F-42025LN Standard Series Flowmeter with 316 SS Guide Rod, 5 to 25GPM

Ask a question about Blue-White F-42025LN Standard Series Flowmeter with 316 SS Guide Rod, 5 to 25GPM

Customer Reviews for the Blue-White F-42025LN
