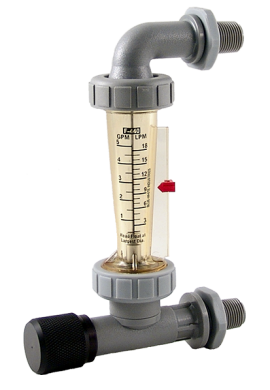

Equipped with a 316 stainless-steel guide rod, this flowmeter has a 5 to 60GPH (20 to 220LPH) flow rate and 1/2in pipe Male NPT. The flowmeter has a panel-mount design.
Equipped with a 316 stainless-steel guide rod, this flowmeter has a 5 to 60GPH (20 to 220LPH) flow rate and 1/2in pipe Male NPT. The flowmeter has a panel-mount design.
This flowmeter features a direct reading permanent scale.
Features
| Max. Working Pressure | 175psi (10.3 bar) @ 70°F (21°C) |
| Max. Fluid Temperature | Standard units: 212°F (100°C) @ 0psi Solarmeter units: 240°F (115°C) @ 0psi |
| Full Scale Accuracy | ±4% |
| Calibration Fluid | Water, specific gravity 1.0 |
| Scale Length | 2in (50mm) approximate |
| Environment | Not for direct sunlight exposure |
| Max. Working Pressure | 175psi (10.3 bar) @ 70°F (21°C) |
| Max. Fluid Temperature | Standard units: 212°F (100°C) @ 0psi Solarmeter units: 240°F (115°C) @ 0psi |
| Full Scale Accuracy | ±4% |
| Calibration Fluid | Water, specific gravity 1.0 |
| Scale Length | 2in (50mm) approximate |
| Environment | Not for direct sunlight exposure |
