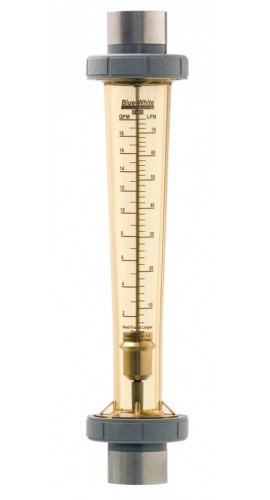

Blue-White F-451003LHKN Flow Meter, 1", in-line, 3.0-30 Gpm Water

Model: F-451003LHKN

Blue-White F-451003LHKN Flow Meter, 1", in-line, 3.0-30 Gpm Water-

Image is for reference only, refer to product info for complete details.

Downloads:

More Blue-White Products

Ask an Expert

Blue-White F-451003LHKN Flow Meter, 1", in-line, 3.0-30 Gpm Water

Model: F-451003LHKN

Compact size for tight installation. 3.0 to 30 GPM range. 12 to 115 LPM range.

Compact size for tight installation. 3.0 to 30 GPM range. 12 to 115 LPM range.

Sale Price $911.80 USD
Regular Price $940.00 USD
Availability 4 to 5 Weeks
Quantity

Blue-White Industries F-451003LHKN Offers

Features

  • One-piece meter body of heat and chemical resistant Polysulfone
  • Stainless steel float guide
  • 1" FPT Polysulfone adapters
  • Viton O-ring seals
  • Floats of Hastelloy.

Blue-White F-451003LHKN Specifications

Maximum Working Pressure 150 psig (10.3 bar) @ 7
Maximum Fluid Temperature 212°F (100°C) @ 0 PSI
Full Scale Accuracy ±3%
Meter Body Material Polysulfone
Adapter Material Polysulfone
Union Nuts Glass Fiber Reinforced Nylon
Guide Rod Material 316 SS or Hastelloy C-276
O-Ring Material Viton
Options: EPDM
Maximum Pressure Drop 2 psi
Weight 3 lbs (1.36 kg)
Click here for complete specifications on the Blue-White F-451003LHKN

What's included with the Blue-White F-451003LHKN

  • Blue-White F-451003LHKN Flow Meter, 1", in-line, 3.0-30 Gpm Water

Ask a question about Blue-White F-451003LHKN Flow Meter, 1", in-line, 3.0-30 Gpm Water

Customer Reviews for the Blue-White F-451003LHKN

Blue-White Industries F-451003LHKN Offers

Features

  • One-piece meter body of heat and chemical resistant Polysulfone
  • Stainless steel float guide
  • 1" FPT Polysulfone adapters
  • Viton O-ring seals
  • Floats of Hastelloy.
Show More...

Blue-White F-451003LHKN Specifications

Maximum Working Pressure 150 psig (10.3 bar) @ 7
Maximum Fluid Temperature 212°F (100°C) @ 0 PSI
Full Scale Accuracy ±3%
Meter Body Material Polysulfone
Adapter Material Polysulfone
Union Nuts Glass Fiber Reinforced Nylon
Guide Rod Material 316 SS or Hastelloy C-276
O-Ring Material Viton
Options: EPDM
Maximum Pressure Drop 2 psi
Weight 3 lbs (1.36 kg)
Click here for complete specifications on the Blue-White F-451003LHKN

What's included with the Blue-White F-451003LHKN

  • Blue-White F-451003LHKN Flow Meter, 1", in-line, 3.0-30 Gpm Water

Ask a question about Blue-White F-451003LHKN Flow Meter, 1", in-line, 3.0-30 Gpm Water

Customer Reviews for the Blue-White F-451003LHKN
