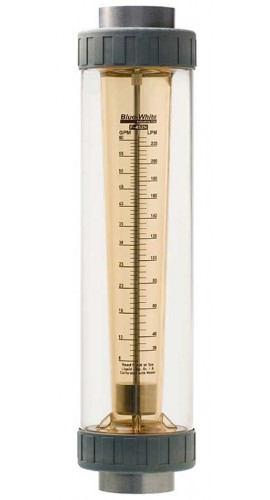

Blue-White F-452130LHN Standard Series Flowmeter with 316 SS Guide Rod, 20 to 130GPM

Model: F-452130LHN

Blue-White F-452130LHN Standard Series Flowmeter with 316 SS Guide Rod, 20 to 130GPM-

Downloads:

More Blue-White Products

Ask an Expert

Blue-White F-452130LHN Standard Series Flowmeter with 316 SS Guide Rod, 20 to 130GPM

Model: F-452130LHN

Equipped with a 316 stainless-steel guide rod, this flowmeter has a 20 to 130GPM (80 to 500LPM) flow rate and 316 SS float material.

Equipped with a 316 stainless-steel guide rod, this flowmeter has a 20 to 130GPM (80 to 500LPM) flow rate and 316 SS float material.

Sale Price $1093.19 USD
Regular Price $1127.00 USD
Availability 3 to 4 Weeks
Quantity

Blue-White F-452130LHN Offers

This flowmeter has a direct reading permanent scale.

Features

  • Polysulfone meter body resists high temperatures and pressures
  • 316SS or Hastelloy rod guided float
  • Adapters and unions engineered for increased protection from misalignment and vibration
  • Custom calibrations, materials, and private labeling available
  • Very low pressure drop
  • Optional polycarbonate splash shield

Blue-White F-452130LHN Specifications

Max. Working Pressure 150psi (10.3 bar) @ 70°F (21°C)
Max. Fluid Temperature 200°F (93°C) @ 0psi
Full Scale Accuracy ±2%
Calibration Fluid Water, specific gravity 1.0
Scale Length 8in (200mm) approximate
Environment Not for direct sunlight exposure
Maximum Pressure Drop 2psi
Click here for complete specifications on the Blue-White F-452130LHN

What's included with the Blue-White F-452130LHN

  • Blue-White F-452130LHN Standard Series Flowmeter with 316 SS Guide Rod, 20 to 130GPM

Ask a question about Blue-White F-452130LHN Standard Series Flowmeter with 316 SS Guide Rod, 20 to 130GPM

Customer Reviews for the Blue-White F-452130LHN

Blue-White F-452130LHN Offers

This flowmeter has a direct reading permanent scale.

Features

  • Polysulfone meter body resists high temperatures and pressures
  • 316SS or Hastelloy rod guided float
  • Adapters and unions engineered for increased protection from misalignment and vibration
  • Custom calibrations, materials, and private labeling available
  • Very low pressure drop
  • Optional polycarbonate splash shield
Show More...

Blue-White F-452130LHN Specifications

Max. Working Pressure 150psi (10.3 bar) @ 70°F (21°C)
Max. Fluid Temperature 200°F (93°C) @ 0psi
Full Scale Accuracy ±2%
Calibration Fluid Water, specific gravity 1.0
Scale Length 8in (200mm) approximate
Environment Not for direct sunlight exposure
Maximum Pressure Drop 2psi
Click here for complete specifications on the Blue-White F-452130LHN

What's included with the Blue-White F-452130LHN

  • Blue-White F-452130LHN Standard Series Flowmeter with 316 SS Guide Rod, 20 to 130GPM

Ask a question about Blue-White F-452130LHN Standard Series Flowmeter with 316 SS Guide Rod, 20 to 130GPM

Customer Reviews for the Blue-White F-452130LHN
