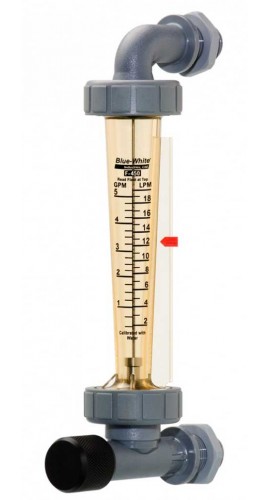

Equipped with a hastelloy guide rod, this flowmeter has a 0.5 to 5GPM (2 to 20LPM) flow rate, 3/8in Female NPT and hastelloy float material. This flowmeter features an in-line mount design.
Equipped with a hastelloy guide rod, this flowmeter has a 0.5 to 5GPM (2 to 20LPM) flow rate, 3/8in Female NPT and hastelloy float material. This flowmeter features an in-line mount design.
This flowmeter has a direct reading permanent scale.
Features
| Max. Working Pressure | 175psi (12 bar) @ 70°F (21°C) |
| Max. Fluid Temperature | Standard units: 212°F (100°C) @ 0psi Solarmeter units: 240°F (115°C) @ 0psi |
| Full Scale Accuracy | ±4% |
| Calibration Fluid | Water, specific gravity 1.0 |
| Scale Length | 4in (100mm) approximate |
| Environment | Not for direct sunlight exposure |
| Maximum Pressure Drop | 2psi |
| Max. Working Pressure | 175psi (12 bar) @ 70°F (21°C) |
| Max. Fluid Temperature | Standard units: 212°F (100°C) @ 0psi Solarmeter units: 240°F (115°C) @ 0psi |
| Full Scale Accuracy | ±4% |
| Calibration Fluid | Water, specific gravity 1.0 |
| Scale Length | 4in (100mm) approximate |
| Environment | Not for direct sunlight exposure |
| Maximum Pressure Drop | 2psi |
