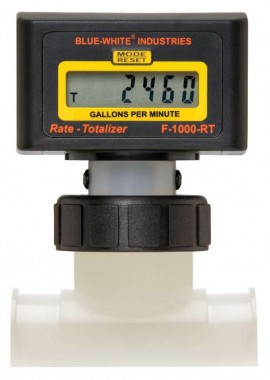

Blue-White RB-200S8-GPM1 Paddlewheel Flowmeter, 30 to 300GPM, Schedule 80

Model: RB-200S8-GPM1

Blue-White RB-200S8-GPM1 Paddlewheel Flowmeter, 30 to 300GPM, Schedule 80-

Image is for reference only, refer to product info for complete details.

Downloads:

More Blue-White Products

Ask an Expert

Blue-White RB-200S8-GPM1 Paddlewheel Flowmeter, 30 to 300GPM, Schedule 80

Model: RB-200S8-GPM1

This paddlewheel flowmeter is for saddle mounting on U.S. IPS pipe (ASTM 1785) and has a 30 to 300GPM flow rate.

This paddlewheel flowmeter is for saddle mounting on U.S. IPS pipe (ASTM 1785) and has a 30 to 300GPM flow rate.

Sale Price $558.72 USD
Regular Price $576.00 USD
Availability 3 to 4 Weeks
Quantity

Blue-White RB-200S8-GPM1 Offers

This paddlewheel flowmeter has easy to read 6 digit LCD and up to 4 decimal positions.

Features

  • Tamper proof
  • Battery operated (2 AAA batteries included)
  • 3 model variations: RB = rate only, TB = total only, RT = rate and totalizer
  • Total reset function can be disabled
  • Display update time: rate 1.5 sec, total 0.5 sec
  • Factory calibrated - nothing to program
  • Custom calibration units available. Contact the factory
  • Weather resistant ABS enclosure. NEMA 4X
  • LCD is not recommended for direct sunlight applications

Blue-White RB-200S8-GPM1 Specifications

Max. Working Pressure 300psig (20 bar) @ 70°F (21°C)
Max. Fluid Temperature 200°F (93°C) @ 0psi, 140°F (60°C) @ 0psi (all PVC saddle fittings)
Full Scale Accuracy ±2%
Saddle Material PVDF (1-1/2in, 2in, 3in, 50mm, 63mm, 90mm sizes), PVC (all other sizes)
Sensor/Paddle/Axle Material PVDF
O-ring Seals FKM
Maximum Pressure Drop 0psi (no significant drop)
Click here for complete specifications on the Blue-White RB-200S8-GPM1

What's included with the Blue-White RB-200S8-GPM1

  • Blue-White RB-200S8-GPM1 Paddlewheel Flowmeter, 30 to 300GPM, Schedule 80

Ask a question about Blue-White RB-200S8-GPM1 Paddlewheel Flowmeter, 30 to 300GPM, Schedule 80

Customer Reviews for the Blue-White RB-200S8-GPM1

Blue-White RB-200S8-GPM1 Offers

This paddlewheel flowmeter has easy to read 6 digit LCD and up to 4 decimal positions.

Features

  • Tamper proof
  • Battery operated (2 AAA batteries included)
  • 3 model variations: RB = rate only, TB = total only, RT = rate and totalizer
  • Total reset function can be disabled
  • Display update time: rate 1.5 sec, total 0.5 sec
  • Factory calibrated - nothing to program
  • Custom calibration units available. Contact the factory
  • Weather resistant ABS enclosure. NEMA 4X
  • LCD is not recommended for direct sunlight applications
Show More...

Blue-White RB-200S8-GPM1 Specifications

Max. Working Pressure 300psig (20 bar) @ 70°F (21°C)
Max. Fluid Temperature 200°F (93°C) @ 0psi, 140°F (60°C) @ 0psi (all PVC saddle fittings)
Full Scale Accuracy ±2%
Saddle Material PVDF (1-1/2in, 2in, 3in, 50mm, 63mm, 90mm sizes), PVC (all other sizes)
Sensor/Paddle/Axle Material PVDF
O-ring Seals FKM
Maximum Pressure Drop 0psi (no significant drop)
Click here for complete specifications on the Blue-White RB-200S8-GPM1

What's included with the Blue-White RB-200S8-GPM1

  • Blue-White RB-200S8-GPM1 Paddlewheel Flowmeter, 30 to 300GPM, Schedule 80

Ask a question about Blue-White RB-200S8-GPM1 Paddlewheel Flowmeter, 30 to 300GPM, Schedule 80

Customer Reviews for the Blue-White RB-200S8-GPM1
