Image is for reference only, refer to product info for complete details.

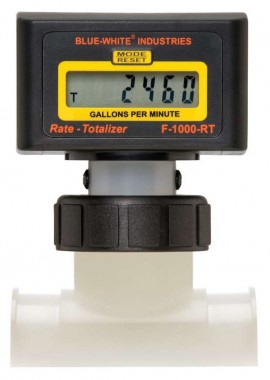

This paddlewheel flowmeter is for saddle mounting on U.S. IPS pipe (ASTM 1785) with 8in IPS pipe size and has a 400 to 4,000GPM flow rate.
This paddlewheel flowmeter is for saddle mounting on U.S. IPS pipe (ASTM 1785) with 8in IPS pipe size and has a 400 to 4,000GPM flow rate.
This paddlewheel flowmeter has easy to read 6 digit LCD and up to 4 decimal positions.
Features
| Max. Working Pressure | 300psig (20 bar) @ 70°F (21°C) |
| Max. Fluid Temperature | 200°F (93°C) @ 0psi, 140°F (60°C) @ 0psi (all PVC saddle fittings) |
| Full Scale Accuracy | ±2% |
| Saddle Material | PVDF (1-1/2in, 2in, 3in, 50mm, 63mm, 90mm sizes), PVC (all other sizes) |
| Sensor/Paddle/Axle Material | PVDF |
| O-ring Seals | FKM |
| Maximum Pressure Drop | 0psi (no significant drop) |
| Max. Working Pressure | 300psig (20 bar) @ 70°F (21°C) |
| Max. Fluid Temperature | 200°F (93°C) @ 0psi, 140°F (60°C) @ 0psi (all PVC saddle fittings) |
| Full Scale Accuracy | ±2% |
| Saddle Material | PVDF (1-1/2in, 2in, 3in, 50mm, 63mm, 90mm sizes), PVC (all other sizes) |
| Sensor/Paddle/Axle Material | PVDF |
| O-ring Seals | FKM |
| Maximum Pressure Drop | 0psi (no significant drop) |
