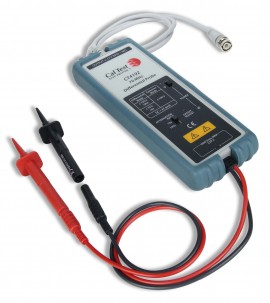

This differential probe has a very high input impedance and low input capacitance with measurements range of up to ±700V. Compatible with most major oscilloscope brands.
This differential probe has a very high input impedance and low input capacitance with measurements range of up to ±700V. Compatible with most major oscilloscope brands.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
The addition of an offset adjustment tool will give you the extra confidence that your measurements are accurate. It is compatible with oscilloscopes from all major manufacturers.
Features
| Electrical Specifications | |
| Bandwidth | 70 MHz |
| Rise Time | 7.5 ns |
| Attenuation | 10x/100x |
| Accuracy | ±1% |
| Maximum Differential Input Voltage (DC + AC Peak) | ±70 V @ 10x ±700 V @ 100x |
| Absolute Max Rated Input Voltage | 1000 Vrms |
| Offset (Typical) | Adjustable: ±5 mV |
| Noise (Typical) | 2 mVrms |
| Source Impedance | 50Ω |
| General Specifications | |
| Weight | With Probe and Rubber Boot: 400g |
| Dimensions | 170 x 63 x 21mm |
| Power Supply | 4 x AA Batteries |
