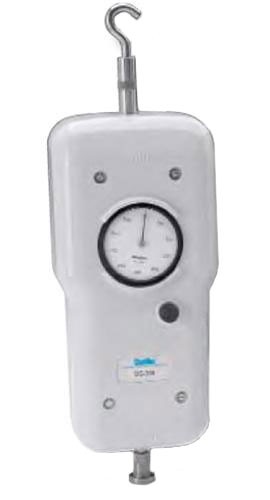

Chatillon DG-500 Mechanical Force Gauge, 500lb x 2.5lb

Model: DG-500

This is ideal for a wide range of force testing applications up to 500 pounds. This is an excellent, economical solution for tensile or compression testing. This features an easy to read concentric dial that measures clockwise only.

This is ideal for a wide range of force testing applications up to 500 pounds. This is an excellent, economical solution for tensile or compression testing. This features an easy to read concentric dial that measures clockwise only.

Your Price $2446.00 USD
Availability 3 to 4 Weeks
Quantity

Chatillon DG-500 Offers

Features

  • Easy to use, durable construction
  • Intrinsically safe
  • Capacity up to 500 pounds (also newtons and kilograms versions available)
  • Push or pull operations
  • Can be used as a hand-held device or equipped with an optional handle set for two-hand operation
  • Tare ring
  • Peak capture
  • Universal mounting plate
  • NIST calibration with data

Chatillon DG-500 Specifications

Accuracy ±0.5% of Full Scale
Overload Capacity 110% of Rated Capacity
Maximum Overload 150% of Rate Capacity
Tare Capacity 10% of Rated Capacity
Dial resolution 0.5% of Full Scale
Deflection 10 mm (0.394) at Full Scale
Operation Temperature 40 to 110°F (5 to 45°C)
Instrument Weight 5 lbs
Shipping Weight 10 lbs
Warranty 2 Years
Click here for complete specifications on the Chatillon DG-500

What's included with the Chatillon DG-500

  • Mechanical Force Gauge
  • Chisel Point Adapter
  • Point Adapter
  • Notch Adapter
  • Flat adapter
  • Hook
  • Extension Rod
  • Carrying Case

Ask a question about Chatillon DG-500 Mechanical Force Gauge, 500lb x 2.5lb

Customer Reviews for the Chatillon DG-500

Chatillon DG-500 Offers

Features

  • Easy to use, durable construction
  • Intrinsically safe
  • Capacity up to 500 pounds (also newtons and kilograms versions available)
  • Push or pull operations
  • Can be used as a hand-held device or equipped with an optional handle set for two-hand operation
  • Tare ring
  • Peak capture
  • Universal mounting plate
  • NIST calibration with data
Show More...

Chatillon DG-500 Specifications

Accuracy ±0.5% of Full Scale
Overload Capacity 110% of Rated Capacity
Maximum Overload 150% of Rate Capacity
Tare Capacity 10% of Rated Capacity
Dial resolution 0.5% of Full Scale
Deflection 10 mm (0.394) at Full Scale
Operation Temperature 40 to 110°F (5 to 45°C)
Instrument Weight 5 lbs
Shipping Weight 10 lbs
Warranty 2 Years
Click here for complete specifications on the Chatillon DG-500

What's included with the Chatillon DG-500

  • Mechanical Force Gauge
  • Chisel Point Adapter
  • Point Adapter
  • Notch Adapter
  • Flat adapter
  • Hook
  • Extension Rod
  • Carrying Case

Ask a question about Chatillon DG-500 Mechanical Force Gauge, 500lb x 2.5lb

Customer Reviews for the Chatillon DG-500
