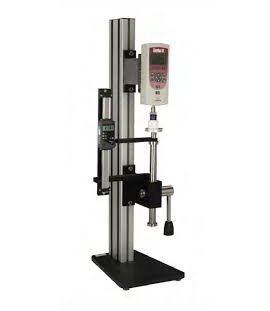

The MT mechanical tester is lever-actuated with 60" (152 cm) clearance. It has DF force gauge capabilities and bench vertical mounting. 6" (2.54 cm) stroke.
The MT mechanical tester is lever-actuated with 60" (152 cm) clearance. It has DF force gauge capabilities and bench vertical mounting. 6" (2.54 cm) stroke.
The MT mechanical tester is lever-actuated with 60" (152 cm) clearance. It has DF force gauge capabilities and bench vertical mounting. 6" (2.54 cm) stroke.
Features
| Load Capacity | 500 lbF, 2.5 kN |
| Column Heights | 59" (1,500 mm) ultra |
| Stroke | 6" (152 mm) |
| Travel Rates | Lever Actuator: 3" (75 mm) per revolution |
| Load Measurement | Chatillon DF gauges |
| Operating Temperature | 40 to 110°F (5 to 45°C) |
| Instrument Weight | 20 lbs (9 kg) |
| Shipping Weight | 25 lbs (12 kg) |
| Load Capacity | 500 lbF, 2.5 kN |
| Column Heights | 59" (1,500 mm) ultra |
| Stroke | 6" (152 mm) |
| Travel Rates | Lever Actuator: 3" (75 mm) per revolution |
| Load Measurement | Chatillon DF gauges |
| Operating Temperature | 40 to 110°F (5 to 45°C) |
| Instrument Weight | 20 lbs (9 kg) |
| Shipping Weight | 25 lbs (12 kg) |
