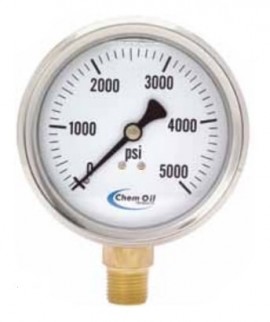

The 210 Series liquid fillable gauges are designed for industrial applications requiring damping. The 210 Series is suitable for gases and liquids that do not attack the brass measuring system
The 210 Series liquid fillable gauges are designed for industrial applications requiring damping. The 210 Series is suitable for gases and liquids that do not attack the brass measuring system
| Dial size | 2.5"/ 63mm |
| Case | 304 Stainless Steel |
| Bezel | 304 Stainless Steel bayonet ring |
| Oil Cap | Blow out plug |
| Window | Toughened Safety Glass |
| Dial | Dished Aluminum, white background, black figures & graduations |
| Pointer | Aluminum, black finish |
| Bourdon Tube | Phosphor Bronze |
| Movement | Brass |
| Connection | Brass in one piece, lower mount, 1/4" NPT male, G 1/4" BSP |
| Execution | 210L-254 fill Glycerin |
| Accuracy | +/- 1.6% of span |
| Range | Vacuum to 100 PSI |
