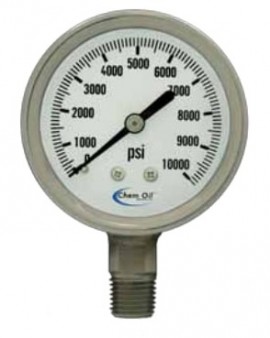

The 310 Series liquid fillable gauges are designed for industrial applications where the media or the environment contains chemical aggressive substances
The 310 Series liquid fillable gauges are designed for industrial applications where the media or the environment contains chemical aggressive substances
| Dial size | 2.5"/ 63mm |
| Case | 304 Stainless Steel |
| Bezel | 304 Stainless Steel bayonet ring |
| Oil Cap | Blow out plug |
| Window | Tempered Safety Glass |
| Dial | Dished Aluminum, white background, black figures & graduations |
| Pointer | Aluminum, black finish |
| Bourdon Tube | 316 Stainless Steel |
| Movement | 304 Stainless Steel |
| Connection | Stainless Steel in one piece, lower mount, 1/4" NPT male, G 1/4" BSP |
| Execution | 310L-254 fill Glycerin |
| Accuracy | +/- 1.6% of span |
| Range | Vacuum to 100 PSI |
