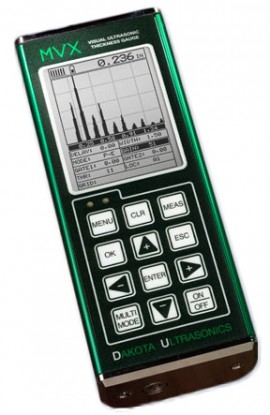

Dakota MVX A/B Scope Ultrasonic Thickness Tester Gauge, Displays A Scan & B Scan

Model: MVX A/B Scope | Order No: Z-149-0004

Dakota MVX A/B Scope Ultrasonic Thickness Tester Gauge, Displays A Scan &amp; B Scan-

Downloads:

Dakota MVX A/B Scope Ultrasonic Thickness Tester Gauge, Displays A Scan & B Scan

Model: MVX A/B Scope | Order No: Z-149-0004

This visual ultrasonic thickness gauge offers more features compared to the MX series. Equipped with data logging capabilities of up to 12,000 pages of memory and four selectable display options: RF, Rectified, B-Scan, and Large Digits for increased efficiency. Measure modes includes: pulse-echo (flaws & pits), pulse-echo with blanking gate & threshold (flaws & pits), and echo-echo (through paint). USB version.

Your Price	$2850.00 USD
Availability	1 to 2 Weeks
Quantity	Quantity

Recommended Accessories

Dakota X-000-0002 Calibration Blocks, 4 Steps, 0.250 to 1.0"

X-000-0002

Dakota X-000-0001 Calibration Blocks, 5 Steps, 0.100" to 0.500"

X-000-0001

Dakota T-102-2700 5.0 MHz Dual Element Transducer, 1/4", Side Entry

T-102-2700

Dakota T-102-1000 2.25 MHz Dual Element Transducer, 1/4", Side Entry

T-102-1000

Dakota F-149-0001 Instrument Case for MVX, PVX and MMX-7

F-149-0001

Dakota X-000-0005 Wooden Carrying Case

X-000-0005

Dakota Ultrasonics MVX A/B Scope Offers

The MVX finishes the line of MX gauges with class. This thing is loaded with all of the features of the MX gauges and a lot more. Four selectable display options: RF, Rectified, B-Scan, and Large Digits. An internal data logger that stores a total of 12,000 readings and waveforms, 64 user custom definable setups, selectable transducer table for improved linearity, thru paint mode with the single press of a button, multiple calibration and material selection options, and auto waveform find - just to mention a few! Equipped with a single element flaw prove-up mode for basic angle beam inspections. This is all nicely packaged in a very mini portable aluminum extrusion for extra durability and portability! Our DakView java-based PC or MAC OSX software makes this thing a complete kit, and then some!

Features

Powered by a 20MHz platform with ultra low power 10 bit digitizer
1/8" VGA grayscale display (240 x 160 pixels). Screen Refresh rate of 25 Hz
Manual or AGC gain option, depending on measure mode selected, 40 dB gain control
Display views: RF, ± Rectified, B-Scan (cross section), or Large Digits
Two independent gates with shared threshold
Measure modes: (P-E) pulse-echo (flaws & pits), (P-E GT) pulse-echo (flaws & pits with blanking gate & threshold), and (E-E) echo-echo (thru-paint)
Data Storage: 12,000 page capacity (each page contains waveform, measurement, and all gauge settings)
Windows® PC interface software
Multiple language support
2 year limited warranty

Applications

Corrosion & Pitting
Tube & Pipe
Tanks
Boilers
Glass

Dakota Ultrasonics MVX A/B Scope Specifications

Operating Temperature	-14 to 140°F (-10 to 60°C)
Case Materials	Extruded Aluminum Body Nickel Plated Aluminum End Caps (Gasket Sealed)
Data Output	Bi-Directional RS232 Serial Port Windows® PC Interface Software
Display	1/8" VGA Grayscale Display (240 x 160 Pixels) 2.4 x 1.8" Viewable Area (62 x 45.7 mm)
Resolution	±0.001" (0.01 mm)
Velocity Range	0.0492 to 0.3936 in/µs (1250 to 9999 m/s)
Power Source	3 x 1.5V Alkaline Batteries or 1.2V NiCad AA Cells
Battery Life	Typically operates for 150 hours on alkaline and 100 hours on NiCad (charger not included)
Dimensions	2.5 x 6.5 x 1.24" (63.5 x 165 x 31.5 mm)
Weight	13.5 oz (with Batteries)

Click here for complete specifications on the Dakota Ultrasonics MVX A/B Scope

What's included with the Dakota Ultrasonics MVX A/B Scope

Thickness Gauge
NIST-Traceable Calibration Certificate
4 oz Bottle of Coupling Fluid
2 x AA Batteries
Software
Cable
Operating Instruction Manual
Carry Case

Click on a category to view a selection of compatible accessories with the Dakota MVX A/B Scope Ultrasonic Thickness Tester Gauge, Displays A Scan & B Scan.

Transducers

Dakota F-000-7001 V-Block Ultrasonic Transducer Holder F-000-7001

Bell shaped spring loaded probe holder. For 3/16" & 1/4" transducers only.

Dakota T-212-2001 5.0 MHz Dual Element Transducer, 1/4", Microdot Connector T-212-2001

For use with Dakota ultrasonic thickness gauges. Hi Temp allows you to measure up to 900°F with intermittent contact. It is necessary to cool the transducer, by submerging the transducer in water between readings, when measuring high temperatures.

Dakota T-104-0000 1.0 MHz Dual Element Transducer, 1/2", Side Entry T-104-0000

For use with Dakota ultrasonic thickness gauges.

Dakota T-102-3300 7.5 MHz Dual Element Transducer, 1/4", Side Entry T-102-3300

For use with Dakota ultrasonic thickness gauges. The extra resolution offers a lower minimum thickness rating overall.

Dakota T-102-2700 5.0 MHz Dual Element Transducer, 1/4", Side Entry T-102-2700

For use with Dakota ultrasonic thickness gauges. Hi Damped allows for increased resolution for through paint or coating measurements.

Dakota T-102-1000 2.25 MHz Dual Element Transducer, 1/4", Side Entry T-102-1000

For use with Dakota ultrasonic thickness gauges.

Dakota T-101-2000 5.0 MHz Dual Element Transducer, 3/16", Side Entry T-101-2000

For use with Dakota ultrasonic thickness gauges.

Dakota T-044-2000 5.0 MHz Dual Element Transducer, 650°F, 1/2" T-044-2000

For use with Dakota ultrasonic thickness gauges.

Test Blocks

Dakota X-000-0002 Calibration Blocks, 4 Steps, 0.250 to 1.0" X-000-0002

For use with Dakota ultrasonic thickness gauges.

Dakota X-000-0001 Calibration Blocks, 5 Steps, 0.100" to 0.500" X-000-0001

For use with Dakota ultrasonic thickness gauges.

Dakota X-000-0005 Wooden Carrying Case X-000-0005

Wooden case for Dakota calibration blocks.

Cables

Dakota N-204-1000 4' Transducer Cable, Dual Lemo to Lemo (Armored) N-204-1000

For use with Dakota ultrasonic thickness gauges.

Dakota N-204-0020 4' Transducer Cable, Dual Lemo to Microdot N-204-0020

For use with Dakota ultrasonic thickness gauges.

Dakota N-104-0021 4' Transducer Cable, Dual Lemo to Microdot Single N-104-0021

For use with Dakota ultrasonic thickness gauges.

Carrying Cases

Dakota F-149-0001 Instrument Case for MVX, PVX and MMX-7 F-149-0001

For use with Dakota ultrasonic thickness gauges.
