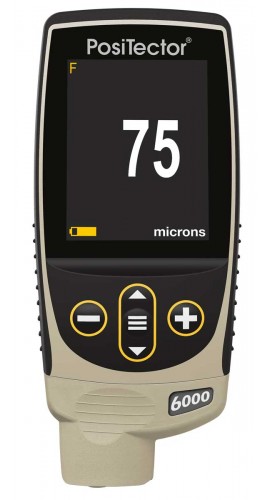

DeFelsko FHXS3 PosiTector 6000 Advanced Coating Thickness Gauge with high-range cabled probe

Model: FHXS3 | Order No: FHXS3-G | UPC: 0810257030183

Downloads:

DeFelsko FHXS3 PosiTector 6000 Advanced Coating Thickness Gauge with high-range cabled probe

Model: FHXS3 | Order No: FHXS3-G | UPC: 0810257030183

Rugged performance with a sleek design, this fully electronic gauge uses magnetic current principles to measure non-conductive coatings on steel substrates accurately and quickly. With an Alumina wear face and a braided cable, the gauge can withstand surfaces of up to 500°F (250°C) and has a range of 0 to 400 mils.

Your Price	$1975.00 USD
Availability	1 to 2 Weeks1 to 2 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your FHXS3 PosiTector 6000 Advanced Coating Thickness Gauge with high-range cabled probe

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICTG1) for only $270.00 USD

Traceable Calibration Certificate for your FHXS3 PosiTector 6000 Advanced Coating Thickness Gauge with high-range cabled probe

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICTG1) for only $270.00 USD

Recommended Accessories

DeFelsko PRBFNGS-D Coating Thickness Probe, 6000 FNGS, Ferrous/Non-Ferrous, High-Range Cabled, 0-2.5 In.

PRBFNGS

DeFelsko PRBFNDS-D FNDS Probe

PRBFNDS

DeFelsko PRBFLS-D Positector Coating Thickness Gauge Probe

PRBFLS

DeFelsko PRBF-D Removable Built in Probe

PRBF

DeFelsko PRBDPMD-C DPMD Probe

PRBDPMD-C

DeFelsko PRBDPMA-C DPMA Probe

PRBDPMA-C

DeFelsko FHXS3 Offers

Each probe retains its own unique calibration information, allowing for full probe interchangeability. PosiTector Smartlink compatible, connect your probe to your smartphone or tablet wirelessly and effortlessly.

Features

Simple

Fast measurement speed - 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection
Ready to measure - no adjustment required for most applications
Large 2.8” impact resistant color touchscreen with keypad for quick menu navigation
On-gauge help explains menu items at the touch of a button
Flashing display - ideal in a noisy environment
Reset feature instantly restores factory settings

Accurate

Built-in temperature compensation ensures measurement accuracy
Hi-RES mode increases displayed resolution for precision applications
Conforms to: ISO 19840/2178/2360/2808, ASTM B244/B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others

Powerful

Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
Screen capture - save 100 screen images for record keeping and review
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
Instant - on feature quickly powers up the gauge if recently powered down
Up to 30% longer battery life
USB port for fast, simple connection to a PC and to supply continuous power, USB cable included
PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers, no software required
Every stored measurement is date and time stamped
Includes PosiSoft suite of software for viewing and reporting data
Storage of 1000 readings per probe - stored readings can be viewed or downloaded

Durable

Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
Ergonomic design with durable rubberized grip
Wear-resistant probe tip
Shock-absorbing protective rubber holster for added impact resistance

Versatile

Multiple calibration adjustment options including zero, 1 point, 2 point, and ISO 19840 correction factors
Selectable display languages
Auto rotating display with flip lock

Includes all of these, PLUS:

Storage of 250,000 readings from multiple probes in up to 1000 batches and sub-batches
Live graphing of measurement data
Prompted Batch Mode - create pre-defined batches with on-screen text and image prompts for each reading
3 scan modes - increase measurement speed to 180+ readings per minute
Normal - take continuous readings without lifting the probe
Statistics - take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
Limited count average - take continuous readings up to a user-specified count. The gauge displays and records the average of the readings
Touchscreen keyboard for quickly renaming batches, adding notes, and more
Multiple stored calibration adjustments for measuring on a variety of substrate conditions
SSPC-PA 2, ISO 19840, and IMO PSPC 90:10 modes help users comply with standards by prompting for max/min specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates

Applications

Measuring paint and powder
Galvanizing, plating and anodizing
Coating quality control

USB keyboard mode

USB Keyboard mode enables PosiTector Advanced instruments to emulate a USB keyboard when connected to a computer.

USB Keyboard mode communicates with your computer by emulating keyboard keystrokes. When connected in this mode, PosiTector Advanced instruments will be recognized as a simple USB keyboard. Each reading is ‘typed’, followed by a carriage return (enter). This provides a simple way to capture readings as they are taken without any special software, drivers or complex setup.

WiFi streaming

Built into the PosiTector Advanced gauge is the ability to stream readings over WiFi. If WiFi Streaming is enabled in the WiFi menu, the gauge will send a GET request to specified URL for each reading. The URL can contain tags which are replaced by the PosiTector with values corresponding to the reading. This solution turns the PosiTector gauge body into an Internet of Things device and is ideal for users with an existing WiFi network and a desire to stream live readings to a central application or database.

How to use WiFi Streaming

Connect the PosiTector to a WiFi network
Navigate to http://<positector ip address="">:8080/stream_url.php on a device connected to the </positector>same network. Replace <positector ip address=""> with the IP of the PosiTector found in the Connect menu. This page contains a text area where a URL can be entered as well as instructions on how to format the URL and what optional tags are available.</positector>
As readings are taken the gauge will send GET requests to the URL entered.

USB serial streaming

PosiTector Advanced allows live streaming of measurement values to a USB connected computer.

Any software that accepts data via a serial interface can be configured to accept the PosiTector data stream.

The PosiTector creates a virtual ‘serial’ port, a protocol commonly used by applications to communicate with external tools and devices. PosiTector measurements can be captured as they are taken in real-time, including metadata such as the units and measurement type.

Any serial-compatible software can be configured to accept the PosiTector data stream. Proficient (by InfinityQS) and WinSPC (by DataNet systems) are two popular statistical process control (SPC) software options.

This solution is ideal for users who want the reliability and simplicity of a wired connection.

Proficient

WinSPC

WiFi server mode

WiFi wireless technology is included with all PosiTector Advanced models Automatic Adhesion Testers with touchscreen display.

Any device connected on the same WiFi network can wirelessly access the gauge's stored measurement data to:

Viewed stored measurements using a standard web browser
Access HTML, comma delimited text (.txt) and JSON schema files - parse information for inclusion in databases or custom software applications
Remotely control gauge memory features such as creating a new batch, closing a batch and deleting all measurement data
Remotely view the live display of a working instrument - see the gauge display as if it were in your hand

This solution is ideal for users who want to store readings in the PosiTector gauge body to be transferred to another device at a later date.

DeFelsko FHXS3 Specifications

Range	0 to 400 mils (0 to 10,000 μm)
Accuracy	±(0.1 mils + 3%) ±(2 μm + 3%)
Dimensions	5 x 2.6 x 1" (127 x 66 x 25.4 mm)
Weight	0.3 lbs (137 g)

Click here for complete specifications on the DeFelsko FHXS3

What's included with the DeFelsko FHXS3

Advanced Gauge Body
Long Form Certificate of Calibration Traceable to NIST or PTB
FHXS Probe
Precision Plastic Shims
Protective Rubber Holster
Wrist Strap
Protective Lens Shield
USB Cable
Carrying Case
3 x AAA Alkaline Batteries
PosiSoft Software
User Manual
Two-Year Warranty
