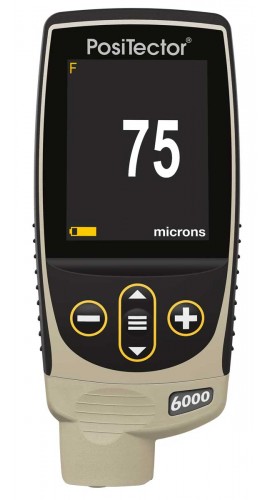

DeFelsko FLS1 PosiTector 6000 Standard Coating Thickness Gauge with high-range cabled probe

Model: FLS1 | Order No: FLS1-G | UPC: 810257030213

Downloads:

DeFelsko FLS1 PosiTector 6000 Standard Coating Thickness Gauge with high-range cabled probe

Model: FLS1 | Order No: FLS1-G | UPC: 810257030213

Rugged performance with a sleek design, this fully electronic gauge uses magnetic current principles to measure thick protective coatings on steel accurately and quickly. With a kinkproof stainless steel cable and a range of 0 to 1.5", it is ideal for measuring intumescent paint and thick protective coatings.

Your Price	$1585.00 USD
Availability	1 Week1 to 2 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your FLS1 PosiTector 6000 Standard Coating Thickness Gauge with high-range cabled probe

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICTG1) for only $270.00 USD

Traceable Calibration Certificate for your FLS1 PosiTector 6000 Standard Coating Thickness Gauge with high-range cabled probe

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICTG1) for only $270.00 USD

Recommended Accessories

DeFelsko PRBDPMD-C DPMD Probe

PRBDPMD-C

DeFelsko PRBDPMA-C DPMA Probe

PRBDPMA-C

DeFelsko PRBFNDS-D FNDS Probe

PRBFNDS

DeFelsko PRBF-D Removable Built in Probe

PRBF

DeFelsko PRBFLS-D Positector Coating Thickness Gauge Probe

PRBFLS

DeFelsko PRBFNGS-D Coating Thickness Probe, 6000 FNGS, Ferrous/Non-Ferrous, High-Range Cabled, 0-2.5 In.

PRBFNGS

DeFelsko FLS1 Offers

Each probe retains its own unique calibration information, allowing for full probe interchangeability.

Features

Simple

Fast measurement speed - 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection
Ready to measure - no adjustment required for most applications
Large 2.8” impact resistant color touchscreen with keypad for quick menu navigation
On-gauge help explains menu items at the touch of a button
Flashing display - ideal in a noisy environment
Reset feature instantly restores factory settings

Accurate

Built-in temperature compensation ensures measurement accuracy
Hi-RES mode increases displayed resolution for precision applications
Conforms to: ISO 19840/2178/2360/2808, ASTM B244/B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others

Powerful

Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
Screen capture - save 100 screen images for record keeping and review
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
Instant - on feature quickly powers up the gauge if recently powered down
Up to 30% longer battery life
USB port for fast, simple connection to a PC and to supply continuous power, USB cable included
PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers, no software required
Every stored measurement is date and time stamped
Includes PosiSoft suite of software for viewing and reporting data
Storage of 1000 readings per probe - stored readings can be viewed or downloaded

Durable

Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
Ergonomic design with durable rubberized grip
Wear-resistant probe tip
Shock-absorbing protective rubber holster for added impact resistance

Versatile

Multiple calibration adjustment options including zero, 1 point, 2 point, and ISO 19840 correction factors
Selectable display languages
Auto rotating display with flip lock

Applications

Measuring paint and powder
Galvanizing, plating and anodizing
Coating quality control

DeFelsko FLS1 Specifications

Range	0 to 1.5" (0 to 38 mm)
Accuracy	±(0.01 in. + 3%) ±(0.2 mm + 3%)
Minimum Surface Area	3.25 x 3.25 in" (83 x 83 mm)
Minimum Substrate Thickness	0.1" (2.5 mm)
Dimensions	(5 x 2.6 x 1" (127 x 66 x 25.4 mm)
Weight	0.3 lbs (137 g)

Click here for complete specifications on the DeFelsko FLS1

What's included with the DeFelsko FLS1

Standard Gauge Body
Long Form Certificate of Calibration Traceable to NIST or PTB
FLS Probe
Precision Plastic Shims
Protective Rubber Holster
Wrist Strap
Protective Lens Shield
USB Cable
Carrying Case
3 x AAA Alkaline Batteries
PosiSoft Software
User Manual
Two-Year Warranty
