Digi-Sense 08117-90 Air/Gas RTD Probe, 100 Ω, 10"

Model: 08117-90 | Order No: WD-08117-90

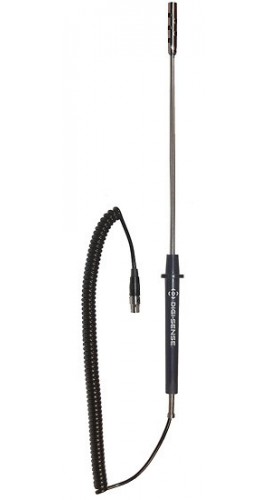

Measure the temperature of air and gas using this RTD probe. It has a stainless-steel sheath and a plastic handle.

Measure the temperature of air and gas using this RTD probe. It has a stainless-steel sheath and a plastic handle.

Sale Price $168.18 USD
Regular Price $217.00 USD
Availability 1 Week
Quantity

Digi-Sense 08117-90 Offers

Keep your experiments and operations running smoothly with help from this Digi-Sense 08117-90 Air/Gas RTD Probe. It accurately measures the temperature of air and gas. Its stainless-steel sheath offers high temperature resistance, and the ABS plastic handle is lighter to put more control in your hands.

Features

  • Compact probe designed for monitoring the temperature of air and gas
  • 304 stainless-steel sheath provides durability
  • ABS plastic handle offers a lightweight feel
  • Time constant is 1 to 3 seconds or greater
  • Alpha coefficient is 0.003850 Ω/Ω/°C (DIN IEC 751)
  • Resistance at ice point 32°F (0°C) is 100 Ω
  • Note: Time constant is the time required to reach 63.2% of the new reading; to determine how long it will take to reach 99% of the new reading multiply the time constant by 5
  • Note: Temperature range is for the probe tip only; ABS handles are rated to 220°F (104°C)

Digi-Sense 08117-90 Specifications

Compatibility Air/gas
Probe RTD
Temperature Range -58 to 932°F (-50 to 500°C)
Temperature Accuracy ±1.1°C, ±0.12% of reading below 300°F (149°C), ±0.35% of reading above 300°F (149°C)
Connector Digi-Sense 3-pin
Sheath Diameter 0.188 (0.478 cm)
Sheath Length 10" (25.4 cm)
Handle Length 5.5" (13.97 cm)
Cable Type Coiled
Product Length 5' (1.5 m)
Click here for complete specifications on the Digi-Sense 08117-90

What's included with the Digi-Sense 08117-90

  • Digi-Sense 08117-90 Air/Gas RTD Probe, 100 Ω, 10"
