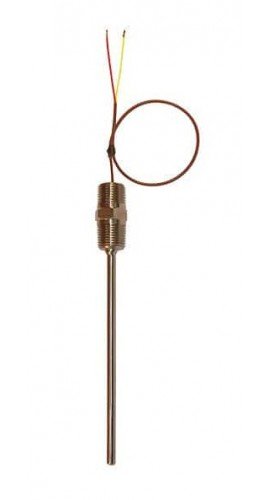

Coming with a 12" sheath length, 0.25" sheath diameter, and 12" extension, the type K spring-loaded ind thermocouple probe also have a 316 stainless steel sheath, installed with current housing, and spring-loaded to be bottomed out into a thermowell. The probes are welded and sealed for direct insertion with ½" NPT insertion threads and has a temperature range of -250 to 1650°F.
Coming with a 12" sheath length, 0.25" sheath diameter, and 12" extension, the type K spring-loaded ind thermocouple probe also have a 316 stainless steel sheath, installed with current housing, and spring-loaded to be bottomed out into a thermowell. The probes are welded and sealed for direct insertion with ½" NPT insertion threads and has a temperature range of -250 to 1650°F.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Thermocouple Probes category for similar products.
Or let's do a search and help you find what you need:
| Length | 12" |
| Probe Type | K |
| Min Temperature (°F) | -250 |
| Max Temperature (°F) | 1650 |
| Min Temperature (°C) | -150 |
| Max Temperature (°C) | 899 |
| Junction | Ungrounded |
| Connector Type | Stripped wire; ½" NPT(M) x ½" NPT(M) |
| Sheath Material | 316 Stainless Steel |
| Sheath Length (in) | 12 |
| Sheath Diameter (in) | 0.25 |
