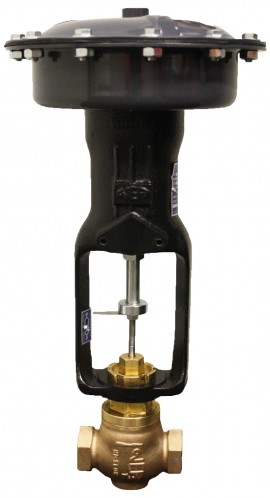

Ideal for steam and water flow control, this simple and versatile control valve ensures precise control with its wide rangeability of 50:1. Rugged and high quality, this valve has a greater flow capacity than most conventional valves of this size. Additionally, this valve features a 123 to 166 psig adjustable USP range.
Ideal for steam and water flow control, this simple and versatile control valve ensures precise control with its wide rangeability of 50:1. Rugged and high quality, this valve has a greater flow capacity than most conventional valves of this size. Additionally, this valve features a 123 to 166 psig adjustable USP range.
Features
Applications
| Valve body | |
| Service | Compatible liquids, gases, and steam |
| Line Size | ½ to 2" (1.27 to 5.08 cm) |
| Body | Style: 2-way or 3-way globe Material: Bronze |
| End Connections | ½ to 2" female NPT |
| Pressure Limit | 250 psi (17.2 bar) |
| Packing | PTFE |
| Temperature Limits | 20 to 400°F (-7 to 204.4°C) |
| Actuactor | |
| Type | Pneumatic spring/diaphragm |
| Control Signal | 3 to 15 psi (0.21 to 1 bar) standard |
| Maximum Supply Pressure | 220, 222, and 230: 100 psi (6.89 bar) 221, 223, 231, and 233: 50 psi (3.45 bar) |
| Air Connection | ¼" female NPT |
| Temperature Limits | 150°F (66°C) |
| General Specifications | |
| Pipe Size | 1" (25.4 mm) |
| CV 100% | 17.42 |
| Set at USP PSIG (Bar) | 125 psig (8.6 bar) |
| Adjustable USP Range PSIG (Bar) | 123 to 166 psig (8.5 to 11.5 bar) |
