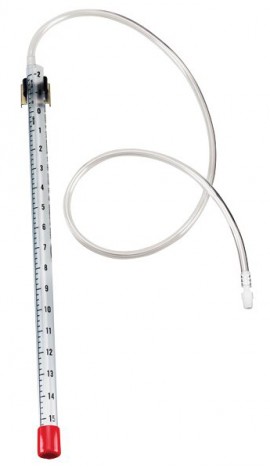

Get a visual indication of natural gas pressure up to 15" w.c. (381 mm) with this gas pressure manometer. Use tap water as the sensing media and a magnetic clip provides temporary or permanent mounting.
Get a visual indication of natural gas pressure up to 15" w.c. (381 mm) with this gas pressure manometer. Use tap water as the sensing media and a magnetic clip provides temporary or permanent mounting.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Digital Manometers category for similar products.
Or let's do a search and help you find what you need:
Durable plastic made for years of trouble-free service, this gas pressure manometer has 3" (7.62 cm) of vinyl tubing and ⅛" (0.32 cm) nylon male NPT to barb fitting.
Features
Applications
| Temperature Limit | 140°F (60°C) maximum |
| Pressure Limits | 15" w.c. (381 mm) |
| Piping Connections | ⅛" male NPT connector provided |
| Wetted Materials | Vinyl, PVC and nylon |
| Agency Approvals | Meets the technical requirements of EU Directive 2011/65/EU (RoHS II) |
| Dimensions | Manometer: 17 x Ø0.75" (431.8 x Ø19.05 mm) Vinyl tubing: 3' (914.4 mm) |
| Weight | 5 oz (142 g) |
| Temperature Limit | 140°F (60°C) maximum |
| Pressure Limits | 15" w.c. (381 mm) |
| Piping Connections | ⅛" male NPT connector provided |
| Wetted Materials | Vinyl, PVC and nylon |
| Agency Approvals | Meets the technical requirements of EU Directive 2011/65/EU (RoHS II) |
| Dimensions | Manometer: 17 x Ø0.75" (431.8 x Ø19.05 mm) Vinyl tubing: 3' (914.4 mm) |
| Weight | 5 oz (142 g) |
