This Power Supply is suitable for powering all Dwyer pressure, temperature, or air velocity transmitters.
This Power Supply is suitable for powering all Dwyer pressure, temperature, or air velocity transmitters.

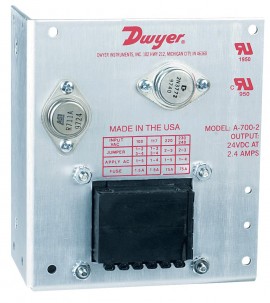

This Power Supply is economical and reliable. Its inexpensive and open-frame design allows for convenient access to input/output solder terminals. Auxiliary inputs are selectable for operation from power sources found worldwide.
| AC Input | 100/120/220/230-240 VAC, 47 to 63 Hz |
| DC Output | 24 to 28V DC regulated |
| Maximum Current Output | Dependent on model (derate output current 10% for 50 Hz operation) |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -40 to 185°F (-40 to 85°C) |
| Line Regulation | ±0.05% for ±10% line change |
| Load Regulation | ±0.05% for 50% load change |
| Thermal Regulation | ±0.02%/°C maximum, ±0.005%/°C typical |
| Output Ripple | 2 mV RMS maximum, 3 mV peak to peak |
| Dynamic Response | 30 microseconds for 50% load change |
| External Fuse Required | 0.5 Amp for 100 to 120V AC, 0.25 Amp for 220 to 240V AC (Not included) |
