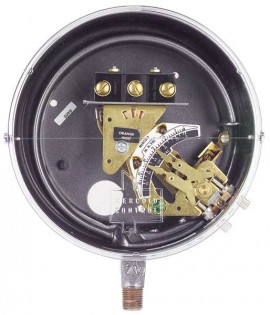

Dwyer DAH-41-153-9E Explosion-proof Bourdon Tube Pressure Switch (10-300 psig), 316SS with SPDT

Model: DAH-41-153-9E

Dwyer DAH-41-153-9E Explosion-proof Bourdon Tube Pressure Switch (10-300 psig), 316SS with SPDT-

Downloads:

More Dwyer Products

Ask an Expert

Dwyer DAH-41-153-9E Explosion-proof Bourdon Tube Pressure Switch (10-300 psig), 316SS with SPDT

Model: DAH-41-153-9E

SPDT: 4A at 120V, 2A at 240V AC/DC. Pressure Ranges of full vacuum to 8000 psig.

SPDT: 4A at 120V, 2A at 240V AC/DC. Pressure Ranges of full vacuum to 8000 psig.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Dwyer DAH-7041-153-9E Explosion-proof Bourdon Tube Pressure Switch (10-300 psig), 316SS with SDST Snap-

Dwyer DAH-7041-153-9E Explosion-proof Bourdon Tube Pressure Switch (10-300 psig), 316SS with SDST Snap

Model: DAH-7041-153-9E

SPDT: 10A at 120/240VAC. Adjustable Deadband.

Learn More

Dwyer DAH/DSH Explosion Proof Series Offers

Features

  • Adjustable or fixed deadband
  • SPDT snap-action, hermetically sealed snap action or hermetically sealed mercury switch
  • External switch setpoint adjustments
  • Minimum deadband is obtainable at any point in the range
  • Pressure Ranges of full vacuum to 8000 psig
  • UL listed, CSA approved. Many models FM approved
  • General purpose, weatherproof or explosion-proof enclosures
Specifications
  • Wetted Materials: Brass, 403 SS, or 316 SS
  • Temperature Limit: 180°F (82°C)
  • Pressure Limit: Maximum pressure of the operating range
  • Repeatability: ±1% of full operating range, ±1.5% on DS-7300 models
  • Switch Type: SPST mercury switch, SPDT mercury switch, SPDT snap switch, or SPDT hermetically sealed snap switch. Other circuit types available
  • Electrical Rating: See Catalog page
  • Electrical Connections: Screw terminal
  • Mounting Orientation: Vertical
  • Set Point Adjustment: Thumbscrew

What's included with the Dwyer DAH-41-153-9E

  • Dwyer DAH-41-153-9E Explosion-proof Bourdon Tube Pressure Switch (10-300 psig), 316SS with SPDT

Ask a question about Dwyer DAH-41-153-9E Explosion-proof Bourdon Tube Pressure Switch (10-300 psig), 316SS with SPDT

Customer Reviews for the Dwyer DAH-41-153-9E

Dwyer DAH/DSH Explosion Proof Series Offers

Features

  • Adjustable or fixed deadband
  • SPDT snap-action, hermetically sealed snap action or hermetically sealed mercury switch
  • External switch setpoint adjustments
  • Minimum deadband is obtainable at any point in the range
  • Pressure Ranges of full vacuum to 8000 psig
  • UL listed, CSA approved. Many models FM approved
  • General purpose, weatherproof or explosion-proof enclosures
Specifications
  • Wetted Materials: Brass, 403 SS, or 316 SS
  • Temperature Limit: 180°F (82°C)
  • Pressure Limit: Maximum pressure of the operating range
  • Repeatability: ±1% of full operating range, ±1.5% on DS-7300 models
  • Switch Type: SPST mercury switch, SPDT mercury switch, SPDT snap switch, or SPDT hermetically sealed snap switch. Other circuit types available
  • Electrical Rating: See Catalog page
  • Electrical Connections: Screw terminal
  • Mounting Orientation: Vertical
  • Set Point Adjustment: Thumbscrew
