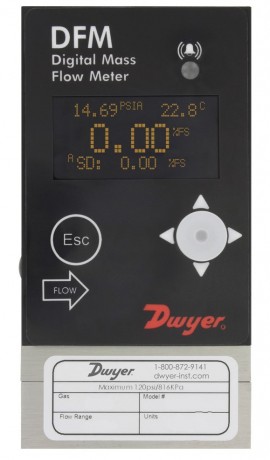

Features 0 to 200 ml/min with LED and can measure up to 30 different gases using an OLED/joystick interface.
Features 0 to 200 ml/min with LED and can measure up to 30 different gases using an OLED/joystick interface.
The digital flow meter is capable of storing up to 90 gases and 20 custom gas mixes.
Features
Applications
| Service | Clean, non-corrosive gases compatible with wetted parts |
| Wetted Materials | 316 SS, 416 SS, high temperature polyamide, alumina ceramic, epoxy, silicone, glass, gold. FKM O-rings |
| Accuracy | ±(0.5% of reading + 0.2% FS) |
| Repeatability | ±0.15% FS |
| Response Time | 10 ms |
| Output | 0-5 VDC |
| Relay Rating | Programmable solid state relay |
| Max. Particulate Size | 20 microns |
| Temperature Limits | 14 to 140°F (-10 to 60°C) |
| Power Supply | 9-26 VDC |
| Process Connections | ⅛" compression fitting for flow rates ≤ 10 L/min; ¼" for ≤ 50 L/min; ⅜" for ≤ 100 L/min |
| Display | 2 x 16 character OLED (model selectable) |
| Pressure Limits | 120 psig (8.27 bar) |
| Leak Integrity | 1 x 10&sup-9; sccs of helium |
| Weight | DFM-01/50: 0.85 lbs (0.4 kg); DFM-51/56: 1.15 lbs (0.52 kg) |
| Agency Approvals | CE |
