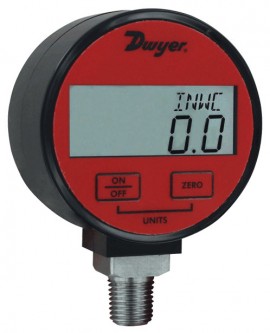

Image is for reference only, refer to product info for complete details.
The only economic digital pressure gauge with selectable engineering units on the market. With its 1% accuracy and digital push-button zero, it's the perfect choice for digitally monitoring the pressures of air and compatible gases.
The only economic digital pressure gauge with selectable engineering units on the market. With its 1% accuracy and digital push-button zero, it's the perfect choice for digitally monitoring the pressures of air and compatible gases.
Features - Series DPGA
Applications - Series DPGA
Features - Series DPGW
Applications - Series DPGW
| Range | 0 to 15 psi |
| Selectable Engineering Units | 15.00 psig, 1.055 kg/cm2, 1.034 bar, 30.54" Hg, 34.60 ft w.c. 103.4 kPa, 240.0 oz/in2, 415.2" w.c., 1034 mbar, 1055 cm w.c., 776 mm Hg |
| Resolution | 0.01 psi |
| Service | Air and Compatible Gases |
| Wetted Materials | 316L SS |
| Housing Materials | ABS Plastic |
| Pressure Limits | 2x Pressure Range |
| Vacuum Range | Maximum Pressure: 30 psig |
| Temperature Limits | 30 to 120°F (-1 to 49°C) |
| Thermal Effect | 0.05% FS/°F |
| Process Connection | 1/4" male NPT |
| Auto Shut-Off | 20 minute |
| Dimensions | 2.62 x 1.52" |
| Weight | 5.6 oz (160g) |
| Range | 0 to 15 psi |
| Selectable Engineering Units | 15.00 psig, 1.055 kg/cm2, 1.034 bar, 30.54" Hg, 34.60 ft w.c. 103.4 kPa, 240.0 oz/in2, 415.2" w.c., 1034 mbar, 1055 cm w.c., 776 mm Hg |
| Resolution | 0.01 psi |
| Service | Air and Compatible Gases |
| Wetted Materials | 316L SS |
| Housing Materials | ABS Plastic |
| Pressure Limits | 2x Pressure Range |
| Vacuum Range | Maximum Pressure: 30 psig |
| Temperature Limits | 30 to 120°F (-1 to 49°C) |
| Thermal Effect | 0.05% FS/°F |
| Process Connection | 1/4" male NPT |
| Auto Shut-Off | 20 minute |
| Dimensions | 2.62 x 1.52" |
| Weight | 5.6 oz (160g) |
