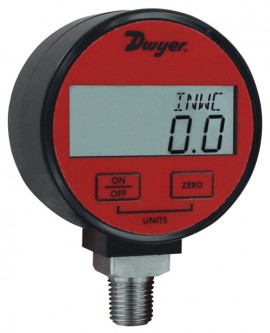

Image is for reference only, refer to product info for complete details.
The only economic digital pressure gauge with selectable engineering units on the market. With its 1% accuracy and digital push-button zero, it's the perfect choice for digitally monitoring the pressures of air and compatible gases.
The only economic digital pressure gauge with selectable engineering units on the market. With its 1% accuracy and digital push-button zero, it's the perfect choice for digitally monitoring the pressures of air and compatible gases.
Features - Series DPGA
Applications - Series DPGA
Features - Series DPGW
Applications - Series DPGW
| Range | 0 to 30 psi |
| Selectable Engineering Units | 30.00 psig, 2.109 kg/cm2, 2.068 bar, 61.1" Hg, 69.2 ft w.c. 206.8 kPa, 480.0 oz/in2, 830" w.c., 2068 mbar, 2109 cm w.c., 1551 mm Hg |
| Resolution | 0.01 psi |
| Service | Liquids and Compatible Gases |
| Wetted Materials | 316L SS |
| Housing Materials | ABS Plastic |
| Accuracy | 15% FS (±5 psi) Includes linearity, hysteresis, repeatability |
| Pressure Limits | 2x Pressure Range |
| Vacuum Range | Maximum Pressure: 30 psig |
| Temperature Limits | 30 to 120°F (-1 to 49°C) |
| Thermal Effect | 0.05% FS/°F |
| Process Connection | 1/4" male NPT |
| Auto Shut-Off | 20 minute |
| Dimensions | 2.62 x 1.52" |
| Weight | 5.6 oz (160g) |
| Range | 0 to 30 psi |
| Selectable Engineering Units | 30.00 psig, 2.109 kg/cm2, 2.068 bar, 61.1" Hg, 69.2 ft w.c. 206.8 kPa, 480.0 oz/in2, 830" w.c., 2068 mbar, 2109 cm w.c., 1551 mm Hg |
| Resolution | 0.01 psi |
| Service | Liquids and Compatible Gases |
| Wetted Materials | 316L SS |
| Housing Materials | ABS Plastic |
| Accuracy | 15% FS (±5 psi) Includes linearity, hysteresis, repeatability |
| Pressure Limits | 2x Pressure Range |
| Vacuum Range | Maximum Pressure: 30 psig |
| Temperature Limits | 30 to 120°F (-1 to 49°C) |
| Thermal Effect | 0.05% FS/°F |
| Process Connection | 1/4" male NPT |
| Auto Shut-Off | 20 minute |
| Dimensions | 2.62 x 1.52" |
| Weight | 5.6 oz (160g) |
