Dwyer L6EPB-B-S-3-C Liquid Level Switch, Brass Housing, 304 SS Float

Model: L6EPB-B-S-3-C

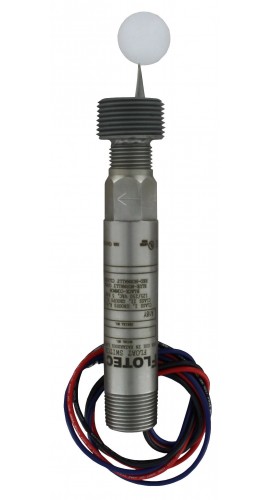

Dwyer L6EPB-B-S-3-C Liquid Level Switch, Brass Housing, 304 SS Float-

Downloads:

More Dwyer Products

Ask an Expert

Dwyer L6EPB-B-S-3-C Liquid Level Switch, Brass Housing, 304 SS Float

Model: L6EPB-B-S-3-C

Features a weatherproof, explosion-proof, and leak-proof (lower) body for demanding outdoor applications. It has a brass body, SPDT float material, NPT process connection, and a float type and installation of 304 SS, spherical, side wall mount.

Features a weatherproof, explosion-proof, and leak-proof (lower) body for demanding outdoor applications. It has a brass body, SPDT float material, NPT process connection, and a float type and installation of 304 SS, spherical, side wall mount.

Sale Price $428.77 USD
Regular Price $468.60 USD
Availability 1 to 2 Weeks
Quantity

Dwyer L6EPB-B-S-3-C Offers

Features

  • Compact design is built for years of trouble-free service
  • Simple and dependable operation with no mechanical linkage
  • Float lever pivoted within the body moves when the process liquid displaces the float and magnet on the opposite end of the float lever controls a second magnet on the switch actuating lever located in the switch housing
  • Leak proof lower body machined from bar stock
  • Side wall mounting
  • Weatherproof and explosion-proof body for demanding outdoor applications
  • Electrical assembly can be easily replaced without removing the unit from the installation so that the process does not have to be shut down
  • Sensitive to level changes of less than 1/2" (12 mm)

Applications

  • Direct pump control for maintaining level
  • Automatic tank dump operations
  • Level control
  • Valve control
  • Level alarm in sumps, scrubber systems, hydro-pneumatic tanks, boilers, and water/wastewater treatment processes

Dwyer L6EPB-B-S-3-C Specifications

Service Liquids compatible with wetted materials
Wetted Materials Float: 304 SS
Lower Body: Brass
Magnet: Ceramic
Temperature Limit -4 to 220°F (-20 to 105°C)
Pressure Limits Maximum pressure 350 psig (24.1 bar)
Enclosure Rating Weatherproof and explosion-proof
Listed with UL and CSA for Class I, Groups A, B, C and D; Class II, Groups E, F, and G
Switch Type SPDT snap switch
Electrical Rating 5 A at 125/250 VAC (V~)
Electrical Connections 18 AWG, 18" (460 mm) long
Upper Body Brass
Conduit Connection 3/4" male NPT
Process Connection 1" male NPT
Mounting Orientation Horizontal with index arrow pointing down
Specific Gravity Minimum 0.7
Weight Approximately 1 lb (0.5 kg)
Click here for complete specifications on the Dwyer L6EPB-B-S-3-C

What's included with the Dwyer L6EPB-B-S-3-C

  • Dwyer L6EPB-B-S-3-C Liquid Level Switch, Brass Housing, 304 SS Float

Ask a question about Dwyer L6EPB-B-S-3-C Liquid Level Switch, Brass Housing, 304 SS Float

Customer Reviews for the Dwyer L6EPB-B-S-3-C

Dwyer L6EPB-B-S-3-C Offers

Features

  • Compact design is built for years of trouble-free service
  • Simple and dependable operation with no mechanical linkage
  • Float lever pivoted within the body moves when the process liquid displaces the float and magnet on the opposite end of the float lever controls a second magnet on the switch actuating lever located in the switch housing
  • Leak proof lower body machined from bar stock
  • Side wall mounting
  • Weatherproof and explosion-proof body for demanding outdoor applications
  • Electrical assembly can be easily replaced without removing the unit from the installation so that the process does not have to be shut down
  • Sensitive to level changes of less than 1/2" (12 mm)

Applications

  • Direct pump control for maintaining level
  • Automatic tank dump operations
  • Level control
  • Valve control
  • Level alarm in sumps, scrubber systems, hydro-pneumatic tanks, boilers, and water/wastewater treatment processes
Show More...

Dwyer L6EPB-B-S-3-C Specifications

Service Liquids compatible with wetted materials
Wetted Materials Float: 304 SS
Lower Body: Brass
Magnet: Ceramic
Temperature Limit -4 to 220°F (-20 to 105°C)
Pressure Limits Maximum pressure 350 psig (24.1 bar)
Enclosure Rating Weatherproof and explosion-proof
Listed with UL and CSA for Class I, Groups A, B, C and D; Class II, Groups E, F, and G
Switch Type SPDT snap switch
Electrical Rating 5 A at 125/250 VAC (V~)
Electrical Connections 18 AWG, 18" (460 mm) long
Upper Body Brass
Conduit Connection 3/4" male NPT
Process Connection 1" male NPT
Mounting Orientation Horizontal with index arrow pointing down
Specific Gravity Minimum 0.7
Weight Approximately 1 lb (0.5 kg)
Click here for complete specifications on the Dwyer L6EPB-B-S-3-C

What's included with the Dwyer L6EPB-B-S-3-C

  • Dwyer L6EPB-B-S-3-C Liquid Level Switch, Brass Housing, 304 SS Float

Ask a question about Dwyer L6EPB-B-S-3-C Liquid Level Switch, Brass Housing, 304 SS Float

Customer Reviews for the Dwyer L6EPB-B-S-3-C
