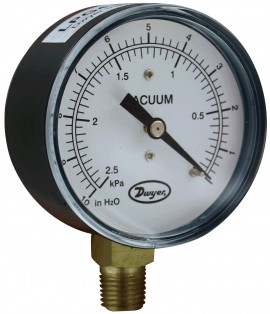

Image is for reference only, refer to product info for complete details.
Offers top of the line performance and accuracy for pressure and vacuum applications.
Offers top of the line performance and accuracy for pressure and vacuum applications.
Constructed from a single beryllium-copper diaphragm affixed to a precision-machined brass plate. This innovative design, together with a high-precision, milled-teeth brass movement and nickel-silver pinion and bearing surface, provide the user with a top of the line low pressure instrument.
Features
Applications
| Service | Compatible gases & liquids |
| Wetted Materials | Brass and beryllium copper |
| Housing | Drawn steel, black finish |
| Lens | Polycarbonate (removable) |
| Accuracy | ±1.5% FS |
| Pressure Limit | 100% of range scale |
| Temperature Limits | Process: -40 to 160°F (-40 to 70°C) Ambient: -40 to 140°F (-40 to 60°C) |
| Size | 2.5" (63 mm) |
| Process Connections | 1/4" male NPT |
| Enclosure Rating | NEMA 3 (IP54) |
| Weight | 7.3 oz (0.21 kg) |
