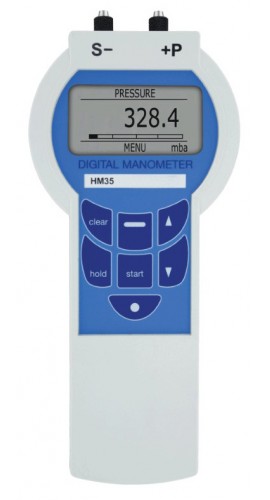

Reliable and precise, this digital manometer measures and logs absolute pressure ranging from 0 to 15 psia and features a 0.2% accuracy. Ideal for calibration facilities and laboratories, this manometer offers a data logging function that stores up to 10,742 readings and transmits the readings to a PC through an IR serial port.
Reliable and precise, this digital manometer measures and logs absolute pressure ranging from 0 to 15 psia and features a 0.2% accuracy. Ideal for calibration facilities and laboratories, this manometer offers a data logging function that stores up to 10,742 readings and transmits the readings to a PC through an IR serial port.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Digital Manometers category for similar products.
Or let's do a search and help you find what you need:
Features
Applications
| Absolute Pressure Range | 0 to 15.9 psia |
| Accuracy | ±0.2% FS ±1 digit (includes linearity, hysteresis, and repeatability) |
| Wetted Materials | 18/8 stainless steel |
| Service | Air and compatible gases |
| Process Connections | Hose 4/6 mm or ⅛" NPT |
| Display | Graphical back lit LCD, 128 x 64 points |
| Memory | 10,742 readings Recording intervals adjustable from 1 second to 24 hours or manual |
| Temperature Limits | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Humidity | Maximum 95% RH, non-condensing |
| Case Protection | IP54 (NEMA 3) |
| Power Requirements | 3 x 1.5 V AA alkaline batteries, installed functional, user replaceable Can operate on 6 to 9 V DC external power |
| Current Consumption | 25 mA without back lit display, IR, or buzzer |
| Dimensions | 7.88 x 3.69 x 1.56" (200.03 x 93.66 x 39.69 mm) |
| Weight | 10.5 oz (300 g) |
