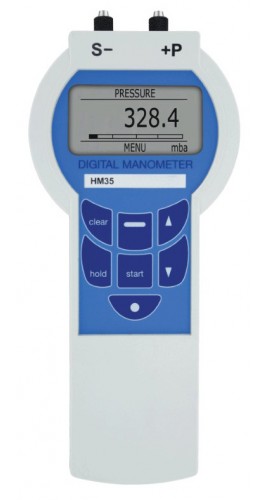

Reliable and precise, this digital manometer measures and logs differential pressure ranging from 0 to 28" w.c. and has a 0.05% accuracy. Ideal for calibration facilities and laboratories, this manometer offers a data logging function that stores up to 10,742 readings and transmits the readings to a PC through an IR serial port.
Reliable and precise, this digital manometer measures and logs differential pressure ranging from 0 to 28" w.c. and has a 0.05% accuracy. Ideal for calibration facilities and laboratories, this manometer offers a data logging function that stores up to 10,742 readings and transmits the readings to a PC through an IR serial port.
Features
Applications
| Differential Pressure Range | 0 to 28" w.c. |
| Accuracy | ±0.05% FS ±1 digit (includes linearity, hysteresis, and repeatability) |
| Wetted Materials | 18/8 stainless steel |
| Service | Air and compatible gases |
| Process Connections | Hose 4/6 mm or ⅛" NPT |
| Display | Graphical back lit LCD, 128 x 64 points |
| Memory | 10,742 readings Recording intervals adjustable from 1 second to 24 hours or manual |
| Temperature Limits | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Humidity | Maximum 95% RH, non-condensing |
| Case Protection | IP54 (NEMA 3) |
| Power Requirements | 3 x 1.5 V AA alkaline batteries, installed functional, user replaceable Can operate on 6 to 9 V DC external power |
| Current Consumption | 25 mA without back lit display, IR, or buzzer |
| Dimensions | 7.88 x 3.69 x 1.56" (200.03 x 93.66 x 39.69 mm) |
| Weight | 10.5 oz (300 g) |
