Dwyer V4 Series FLOTECH Vane Operated Flow Switch, 316 ss, ATEX compliant construction

Model: V4-SS-2-U-AT

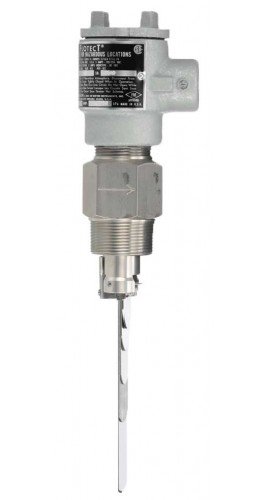

Dwyer V4 Series FLOTECH Vane Operated Flow Switch, 316 ss, ATEX compliant construction-

Downloads:

More Dwyer Products

Ask an Expert

Dwyer V4 Series FLOTECH Vane Operated Flow Switch, 316 ss, ATEX compliant construction

Model: V4-SS-2-U-AT

Work with superior performance with this flow switch that offers dependable protection against flow variation and stopping in pipelines for fluids, gases, and flowing solids. Rugged and reliable, this 316 stainless steel switch has an ATEX-compliant construction and features a free-swinging vane with a leak-proof body.

Work with superior performance with this flow switch that offers dependable protection against flow variation and stopping in pipelines for fluids, gases, and flowing solids. Rugged and reliable, this 316 stainless steel switch has an ATEX-compliant construction and features a free-swinging vane with a leak-proof body.

Sale Price $1153.22 USD
Regular Price $1260.35 USD
Availability 2 to 3 Weeks
Quantity

Dwyer V4-SS-2-U-AT Offers

Install this flow switch with ease directly into a pipeline with a thredolet, tee, or flange. In addition, this switch protects equipment and pipeline systems from damage, reduction, or loss of flow.

Features

  • Unique magnetically actuated switching design gives superior performance
  • High pressure rating of 1000 psig (69 bar) with the brass body and 2000 psig (138 bar) with the 316 SS body
  • Features a free-swinging vane which attracts a magnet within the solid metal switch body, actuating a snap switch by means of a simple lever arm with no bellows, springs, or seals to fail
  • Leak proof body machined from bar stock
  • Electrical assembly can be easily replaced without removing the unit from installation so that the process does not have to be shut down
  • Installs directly and easily into pipeline with a thredolet, tee, or flange

Applications

  • Protects pumps, motors and other equipment against low or no flow
  • Controls dampers according to flow
  • Controls sequential operation of pumps
  • Automatically starts auxiliary pumps and engines
  • Stops liquid cooled engines, machines and processing when coolant flow is interrupted
  • Shuts down burner when air flow through heating coil fails

Dwyer V4-SS-2-U-AT Specifications

Service Gases or liquids compatible with wetted materials
Wetted Materials 316 SS
Temperature Limits Temperature: -4 to 275°F (-20 to 135°C) standard
Ambient: -4 to 163°F (-20 to 73°C)
Process: -4 to 163°F (-20 to 73°C)
Pressure Limits 316 SS body 2000 psig (138 bar)
Enclosure Rating Weatherproof and explosion-proof
ATEX standards: EN 60079-0:2012+A11:2013; EN 60079-1:2014
Switch Type SPDT snap switch standard
Electrical Rating 10 A at 125/250 V AC (V~)
Connections Electrical: Terminal block
Conduit: ¾" female NPT standard
Process: 1 to ½" male NPT
Mounting Orientation Within 5° of vertical for proper operation
Set Point Adjustment For universal vane: five vane combinations
Agency Approvals ATEX
Dimensions 8 x 3.34" (203.2 x 84.93 mm)
Weight 4 lbs (1.9 kg)
Click here for complete specifications on the Dwyer V4-SS-2-U-AT

What's included with the Dwyer V4-SS-2-U-AT

  • Dwyer V4 Series FLOTECH Vane Operated Flow Switch, 316 ss, ATEX compliant construction

Ask a question about Dwyer V4 Series FLOTECH Vane Operated Flow Switch, 316 ss, ATEX compliant construction

Customer Reviews for the Dwyer V4-SS-2-U-AT

Dwyer V4-SS-2-U-AT Offers

Install this flow switch with ease directly into a pipeline with a thredolet, tee, or flange. In addition, this switch protects equipment and pipeline systems from damage, reduction, or loss of flow.

Features

  • Unique magnetically actuated switching design gives superior performance
  • High pressure rating of 1000 psig (69 bar) with the brass body and 2000 psig (138 bar) with the 316 SS body
  • Features a free-swinging vane which attracts a magnet within the solid metal switch body, actuating a snap switch by means of a simple lever arm with no bellows, springs, or seals to fail
  • Leak proof body machined from bar stock
  • Electrical assembly can be easily replaced without removing the unit from installation so that the process does not have to be shut down
  • Installs directly and easily into pipeline with a thredolet, tee, or flange

Applications

  • Protects pumps, motors and other equipment against low or no flow
  • Controls dampers according to flow
  • Controls sequential operation of pumps
  • Automatically starts auxiliary pumps and engines
  • Stops liquid cooled engines, machines and processing when coolant flow is interrupted
  • Shuts down burner when air flow through heating coil fails
Show More...

Dwyer V4-SS-2-U-AT Specifications

Service Gases or liquids compatible with wetted materials
Wetted Materials 316 SS
Temperature Limits Temperature: -4 to 275°F (-20 to 135°C) standard
Ambient: -4 to 163°F (-20 to 73°C)
Process: -4 to 163°F (-20 to 73°C)
Pressure Limits 316 SS body 2000 psig (138 bar)
Enclosure Rating Weatherproof and explosion-proof
ATEX standards: EN 60079-0:2012+A11:2013; EN 60079-1:2014
Switch Type SPDT snap switch standard
Electrical Rating 10 A at 125/250 V AC (V~)
Connections Electrical: Terminal block
Conduit: ¾" female NPT standard
Process: 1 to ½" male NPT
Mounting Orientation Within 5° of vertical for proper operation
Set Point Adjustment For universal vane: five vane combinations
Agency Approvals ATEX
Dimensions 8 x 3.34" (203.2 x 84.93 mm)
Weight 4 lbs (1.9 kg)
Click here for complete specifications on the Dwyer V4-SS-2-U-AT

What's included with the Dwyer V4-SS-2-U-AT

  • Dwyer V4 Series FLOTECH Vane Operated Flow Switch, 316 ss, ATEX compliant construction

Ask a question about Dwyer V4 Series FLOTECH Vane Operated Flow Switch, 316 ss, ATEX compliant construction

Customer Reviews for the Dwyer V4-SS-2-U-AT
