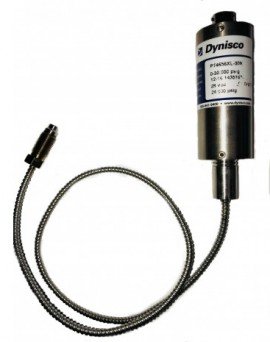

Ideal for space-restricted areas, the classic melt pressure transducer features a 0.06" diameter exposed capillary. It allows 1/16" radius bends in applications where mounting space is limited. It also has a free-spinning jam nut that simplifies installation.
Ideal for space-restricted areas, the classic melt pressure transducer features a 0.06" diameter exposed capillary. It allows 1/16" radius bends in applications where mounting space is limited. It also has a free-spinning jam nut that simplifies installation.
The classic melt pressure transducer has good stability and repeatability.
Features
Applications
| Pressure Range | 1,000 to 30,000 psi |
| Exposed Capillary | 10" |
| Flexible Armor | 18" |
| Accuracy | 0.5% FSO |
| Repeatability | ±0.2% FSO |
| Mounting Torque | 500 inch - lbs. maximum |
| Maximum Pressure | 2 x full range or 35,000 psi (whichever is less) |
| Material in Contact with Pressure Media | 15 - 5 PH stainless steel, Dymax coated |
| Configuration | Four active arm bonded Wheatstone bridge strain gage |
| Bridge Resistance | Input: 345 Ohms minimum; Output: 350 Ohms ±10% |
| Full Scale Output | 3.33 mV/V ±2.0% |
| Zero Balance | ±10% full scale |
| Excitation | 10 Vdc recommended, 12 Vdc maximum |
| Internal Shunt Calibration (R-Cal) | 80% FSO ±1.0% |
| Insulation Resistance | 1,000 megohms at 50 Vdc |
| Maximum Diaphragm Temperature | 750°F (400°C) |
