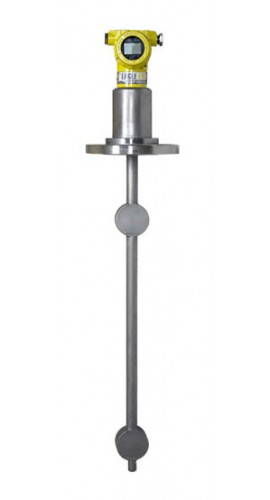

Eagle Eye DM-1000A A-Type, Vertically Top Mounted Online Density Meter

Model: DM-1000A

Eagle Eye DM-1000A A-Type, Vertically Top Mounted Online Density Meter

Model: DM-1000A

Designed for continuous monitoring and process control of liquid concentration, density and temperature solutions across a large range of applications. Highly accurate, simple and quick with minimal downtime or interference.

Designed for continuous monitoring and process control of liquid concentration, density and temperature solutions across a large range of applications. Highly accurate, simple and quick with minimal downtime or interference.

Discontinued!

This product has been discontinued and is no longer available. There are no replacement options.

We can help you find what you need:


Eagle Eye DM-1000A Offers

Features

  • Top mounted, vertical Inline density meter
  • Stainless steel, very safe, no moving parts, models available for sanitary or industrial environments
  • Data measured is seen on digital LCD displays
  • User configurable units can be alternated during an operation
  • Troubleshooting procedures with an error message takes place, to help trace cause of problem
  • Displays real-time measurement, continuously monitors process, and transmits data through a 4-20 mA output

Eagle Eye DM-1000A Specifications

Measurement Range Density: 0.000 – 3.000 g/cm31, Temperature: 0 – 150°C 2 / 32 – 302°F2
Accuracy Density 0 – 1 g/cm3: 0.001 g/cm3, Density 0 – 2 g/cm3: 0.002 – 0.003 g/cm3, Density 0 – 3 g/cm3: 0.002 – 0.005 g/cm3, Temperature: 0.2°C / 0.4°F
Resolution 0.0005 g/cm3
Communication Output 4 – 20 mA, HART Protocol
Display Backlit 4.5" Digital LCD
Volumetric Displacement Less than 0.15 cm33/ 0.01 in33
Power Requirements 15 – 30 VDC (24 VDC recommended)
Operating Environment -10 – 60 °C / 14 – 140 °F, 0 – 90% RH
Click here for complete specifications on the Eagle Eye DM-1000A

What's included with the Eagle Eye DM-1000A

  • Eagle Eye DM-1000A A-Type, Vertically Top Mounted Online Density Meter

Ask a question about Eagle Eye DM-1000A A-Type, Vertically Top Mounted Online Density Meter

Customer Reviews for the Eagle Eye DM-1000A

Eagle Eye DM-1000A Offers

Features

  • Top mounted, vertical Inline density meter
  • Stainless steel, very safe, no moving parts, models available for sanitary or industrial environments
  • Data measured is seen on digital LCD displays
  • User configurable units can be alternated during an operation
  • Troubleshooting procedures with an error message takes place, to help trace cause of problem
  • Displays real-time measurement, continuously monitors process, and transmits data through a 4-20 mA output

Eagle Eye DM-1000A Specifications

Measurement Range Density: 0.000 – 3.000 g/cm31, Temperature: 0 – 150°C 2 / 32 – 302°F2
Accuracy Density 0 – 1 g/cm3: 0.001 g/cm3, Density 0 – 2 g/cm3: 0.002 – 0.003 g/cm3, Density 0 – 3 g/cm3: 0.002 – 0.005 g/cm3, Temperature: 0.2°C / 0.4°F
Resolution 0.0005 g/cm3
Communication Output 4 – 20 mA, HART Protocol
Display Backlit 4.5" Digital LCD
Volumetric Displacement Less than 0.15 cm33/ 0.01 in33
Power Requirements 15 – 30 VDC (24 VDC recommended)
Operating Environment -10 – 60 °C / 14 – 140 °F, 0 – 90% RH
Click here for complete specifications on the Eagle Eye DM-1000A

What's included with the Eagle Eye DM-1000A

  • Eagle Eye DM-1000A A-Type, Vertically Top Mounted Online Density Meter

Ask a question about Eagle Eye DM-1000A A-Type, Vertically Top Mounted Online Density Meter

Customer Reviews for the Eagle Eye DM-1000A
