Designed for fast and easy battery voltage testing with built in digital data-logging capabilities. Records and measures cell voltages in less than 1 second, allowing hundreds of cell voltage readings to be measured from a string of cells.
Designed for fast and easy battery voltage testing with built in digital data-logging capabilities. Records and measures cell voltages in less than 1 second, allowing hundreds of cell voltage readings to be measured from a string of cells.
This product is a special order item which can’t be returned or cancelled.

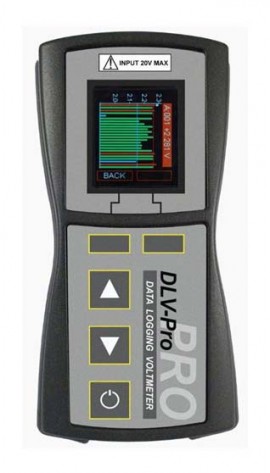

The DLV-Pro performs a full discharge test on up to 256 cells by recording up to 11 time-stamped voltage readings for each cell, along with time-stamped load current readings (via a shunt/current probe) and initial and/or final hydrometer readings via the SG-Ultra Max. It also provides immediate, on-site analysis of all battery test data including threshold, statistical and graphical reporting, battery and individual cell discharge curves. Threshold limits for all modes can be set manually on the instrument or via the USB/PC interface. Test data can be uploaded to a PC using the included Winmeter 5.1 Battery Analysis Software.
Features
Applications
| Measurement Range | 0 - 20 VDC |
| Accuracy | 0 - 4V: ± 5mV, 0 – 20V: ± 10mV |
| Resolution | 0 – 4V: 1mV, 0 – 20V: 1mV |
| Test Speed | 1 second per cell |
| Display | 1.4 x 1" (35 x 28 mm) color LED |
| Operating Environment | Temperature: 32 to 104°F (0 to 40°C), Humidity: 0 – 80% (0-31°C) / 0 – 50% (32-40°C) |
| Dimensions | 6.3 x 3 x 1.3" (165 x 76 x 33 mm) |
| Weight | 298 g (10.5 oz) |
| Options | Option A: 8 Strings of 256 VDC, 8 Strings of 256 S.G., 20 Strings of 48 VDC, Option B: 20 Strings of 48 VDC, 20 Strings of 48 S.G. |
