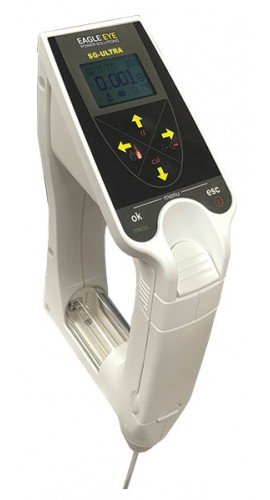

Eagle Eye SG-Ultra Digital Battery Hydrometer/Density Tester, 0.000 to 2.000 g/cm³

Model: SG-ULTRA

Eagle Eye SG-Ultra Digital Battery Hydrometer/Density Tester, 0.000 to 2.000 g/cm<sup>3</sup>-

Downloads:

Eagle Eye SG-Ultra Digital Battery Hydrometer/Density Tester, 0.000 to 2.000 g/cm³

Model: SG-ULTRA

Portable and rugged, this digital hydrometer/density meter provides an accuracy of 99.999% for temperature-compensated specific gravity, density, and density-related values. In addition, this easy-to-use digital hydrometer is ideal for battery testing (Lead-Acid and Ni-Cad), alcohol/food testing, petroleum testing, and more.

Sale Price	$2131.56 USD
Regular Price	$2885.00 USD
Availability	1 in Stock
Quantity	Quantity

Recommended Accessories

Eagle Eye MAX IrDA Adapter

MAX IrDA Adapter

Eagle Eye MAX Carry Case Hard Carrying Case

MAX Carry Case

Eagle Eye 100M PROBE Probe & Electronic Module w/ 4' PVC Cable

100M PROBE

Eagle Eye ULTRA Spare Parts Kit Tubes, Pump, O-Ring

ULTRA Spare Parts Kit

Eagle Eye MAX Hand Pump Printer Paper For Printer CMP-10

MAX Hand Pump

Eagle Eye SG-ULTRA Offers

Accurate and compact digital battery hydrometer/battery density tester that measures temperature-compensated specific gravity, density, and density-related values. To use, select from multiple units of measure to suit your measurement needs or create custom user-defined requirements. Results can be downloaded to a printer or PC and include sample identification, measurement unit, temperature correction coefficient, instrument identification, and date/time. Reliable results appear in three seconds - immerse the sampling tube, pull the trigger, and read the final result.

Features

Accuracy: 99.999% accurate
Efficient and safe: 10 times faster and safer than conventional methods
Temperature: Measures specific gravity and temperature simultaneously
User-controlled sampling: Select from multiple units of measure to suit your measurement needs or create custom requirements
Data collection: Wireless communication infrared data interface for data exchange with a PC and data export to a printer
Battery life: 90 hours
Large LCD display screen with back-light
Robust and rugged, comes with protective carrying case, and sustains tough field environments with a sealed housing
Storage of up to 1100 results including sample ID, measurement unit, temperature correction coefficient, instrument identification, date and time
Available measuring units: Density, Comp. Density, SG (T/T), SG, API, Brix, Alcohol, H₂SO₄, Baume, Plato, Proof, Concentration
Compliance: CE compliant

Applications

Utilities

Alcohol

Battery testing

Food and beverage

Industrial manufacturing

Quality control

Eagle Eye SG-ULTRA Specifications

Measurement Range	Density: 0.000 to 2.000 g/cm³ Sample temperature: 32 to 104°F (0 to 40°C)^* Viscosity: 0 to 2000 mPa ^Sample must not freeze in the measuring cell*
Accuracy	Density: 0.001 g/cm³ Temperature: ±0.4°F (0.2°C)
Resolution	0.0001 g/cm³
Minimum Sample Volume	2 mL
Communication	IrDA interface
Display	Backlit LCD
Internal Storage	1100 results
Operating Environment	-15 to 122°F (10 to 50°C)
Power Requirements	2 x AAA batteries
Dimensions	Main: 9 x 4.5 x 2.5" (229 x 114 x 64 mm) Sample tube: 5.63 x 0.13" (142.88 x 3.18 mm) diameter
Weight	2.7 oz (360 g)

Click here for complete specifications on the Eagle Eye SG-ULTRA

What's included with the Eagle Eye SG-ULTRA

Digital Battery Hydrometer/Density Tester
Sample Tube
IrDA Adapters
Carrying Case
User Manual
SG-Ultra Management Software
One-Year Warranty

Click on a category to view a selection of compatible accessories with the Eagle Eye SG-Ultra Digital Battery Hydrometer/Density Tester, 0.000 to 2.000 g/cm³.

Modules

Eagle Eye 100M ELEC MOD Electronic Module 100M ELEC MOD

For use with SG-100M Electronic Hydrometer.

Accessories

Eagle Eye ULTRA Sample Pump Complete ULTRA Sample Pump

For use with the SG-ULTRA Digital Hydrometer.

Eagle Eye ULTRA O-Ring For Sample Pump ULTRA O-Ring

For use with the SG-ULTRA Digital Hydrometer.

Eagle Eye MAX Sample Tube MAX Sample Tube

For use with the SG-ULTRA MAX Digital Hydrometers.

Eagle Eye MAX Ex-Sample Tube MAX Ex-Sample Tube

For use with the SG-ULTRA MAX Digital Hydrometers.

Eagle Eye 100M 4-20ma Analog Output Board 100M 4-20ma

For use with SG-100M Electronic Hydrometer.

Eagle Eye 100M 5AMP Dual 5 Amp Relay Board 100M 5AMP

For use with SG-100M Electronic Hydrometer.

Eagle Eye 100M TEFLON CA All Teflon Cable 100M TEFLON CA

For use with SG-100M Electronic Hydrometer.

Eagle Eye 1000 O Ring For Sample Chamber 1000 O Ring

For use with SG-1000 Digital Hydrometers.

Eagle Eye ULTRA Sample Tube Set Sample Tube/Washer (7" x 1/8") ULTRA Sample Tube Set

For use with the SG-ULTRA Digital Hydrometer.

Eagle Eye ULTRA Ex-Sample Tube Set (2) Extended Sample Tubes Set (11.8" x 1/8") ULTRA Ex-Sample Tube Set

For use with the SG-ULTRA Digital Hydrometer.

Adapters

Eagle Eye MAX IrDA Adapter MAX IrDA Adapter

For use with the SG-ULTRA MAX Digital Hydrometers.

Eagle Eye ULTRA IrDA Wireless Adapt USB to I.R. ULTRA IrDA Wireless Adapt

For use with the SG-ULTRA Digital Hydrometer.

Carrying Cases

Eagle Eye MAX Carry Case Hard Carrying Case MAX Carry Case

For use with the SG-ULTRA MAX Digital Hydrometers.

Eagle Eye 1000 Case Hard Carrying Case 1000 Case

For use with SG-1000 Digital Hydrometers.

Eagle Eye ULTRA Case Hard Carrying Case ULTRA Case

For use with the SG-ULTRA Digital Hydrometer.

Printers

Eagle Eye ULTRA Printer Dot Matrix Printer ULTRA Printer

For use with the SG-ULTRA Digital Hydrometer.

Eagle Eye MAX Hand Pump Printer Paper For Printer CMP-10 MAX Hand Pump

For use with the SG-ULTRA MAX Digital Hydrometers.

Probes

Eagle Eye 100M PROBE Probe & Electronic Module w/ 4' PVC Cable 100M PROBE

For use with SG-100M Electronic Hydrometer.

Spare Parts

Eagle Eye 1000 Spare Parts Kit Sample Chamber with Pump, O-Ring, (3) Sample Tubes 1000 Spare Parts Kit

For use with SG-1000 Digital Hydrometers.

Eagle Eye 1000 Sample Tube (3) Sample Tubes 1000 Sample Tube

For use with SG-1000 Digital Hydrometers.

Eagle Eye ULTRA Spare Parts Kit Tubes, Pump, O-Ring ULTRA Spare Parts Kit

For use with the SG-ULTRA Digital Hydrometer.
