Choose between seven thermocouple types with this DC-powered T/C input limit alarm which provides relay contact closures at a preset temperature input level. In addition, this alarm features two contact closures, and the input type and alarm functions are field configurable.
Choose between seven thermocouple types with this DC-powered T/C input limit alarm which provides relay contact closures at a preset temperature input level. In addition, this alarm features two contact closures, and the input type and alarm functions are field configurable.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:

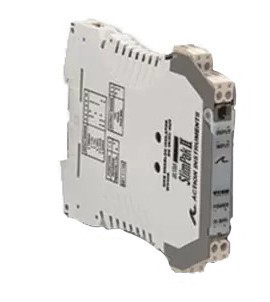

Accurate and stable, this DC-powered T/C input limit alarm features two standard non-latching SPDT relays. In addition, this alarm features high or low trips and failsafe or non-failsafe operation.
Features
| Inputs | Thermocouples supported: B, E, J, K, R, S, T Overvoltage: ±10 V differential Common mode: 1800 V DC (input to ground) Limit differential (deadband): 0.2% to 100% of span. Set by pushbutton adjustment Ranges: B: 167 to 3308°F (75 to 1820°C) E: -445 to 1832°F (-265 to 1000°C) J: -346 to 1400°F (-210 to 760°C) K: -445 to 2502°F (-265 to 1372°C) R: -13 to 3200°F (-25 to 1760°C) S: -13 to 3200°F (-25 to 1760°C) T: -445 to 734°F (-265 to 390°C) |
| Response Time | Dynamic deadband: Relay status will change when proper setpoint/process condition exists for 100 ms Normal mode: <250 ms (analog filtering) |
| Setpoint | Effectivity: Setpoints are adjustable (by pushbutton) over 100% of the selected input span Repeatability: ±0.05% of FS, ±33.8°F (±1°C) (constant temperature) |
| Relay Contacts | 2 SPDT (2 form C) Relays, 1 relay per setpoint Current rating (general use): 120 V AC: 5 A; 240 V AC: 2 A; 28 V DC: 5 A Material: Gold flash over silver alloy Electrical life: 105 operations |
| Local Range Selection | By DIP switch |
| Stability | ±100 ppm of FS/°C |
| Common Mode Rejection | 120 dB at DC, >90 dB at 60 Hz, or better |
| Isolation | 1800 V DC or peak AC between, contacts, input and power |
| ESD Susceptibility | Capable of meeting IEC 801-2 level 3 (8 kV) |
| Host Module Interface | IR link |
| Wire Terminations | Screw terminations for 12 to 22 AWG |
| Humidity (non-condensing) | Operating: 15 to 95% RH at 113°F (45°C) Storage: 90% RH for 24 hours at 140°F (60°C) |
| Temperature | Operating: 32 to 140°F (0 to 60°C) Storage: -13 to 185°F (-25 to 85°C) |
| Agency Approvals (EMC and Safety) | UL recognized per standard UL508 (File No.E99775) CE conformance per EMC directive 2004/108/EC and low voltage directive 2006/95/EC (Input <75 V DC, only) RoHS compliant |
| Power | 9 to 30 V DC; 1.2 W typical, (3.25 W maximum both relays energized) |
| Dimensions | 4.39 x 3.54 x 0.69" (111.6 x 90 x 17.5 mm) DIN rail case |
