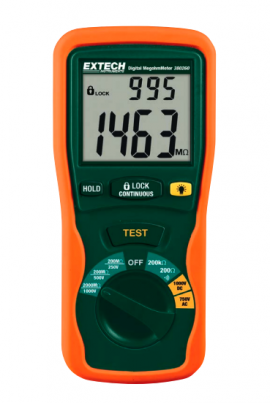

Extech 380260 Autoranging Digital Megohmmeter, 1000 V

Model: 380260 | UPC: 793950382608

Extech 380260 Autoranging Digital Megohmmeter, 1000 V

Model: 380260 | UPC: 793950382608

Capable of measuring insulation resistance up to 2000 MΩ, this auto-ranging digital megohmmeter features a dual display that indicates test voltage output and insulation resistance. With a choice of 250,500 or 1000 VDC test voltages, this megohmmeter also features an automatic discharge, power lock-on, and data-hold.

Capable of measuring insulation resistance up to 2000 MΩ, this auto-ranging digital megohmmeter features a dual display that indicates test voltage output and insulation resistance. With a choice of 250,500 or 1000 VDC test voltages, this megohmmeter also features an automatic discharge, power lock-on, and data-hold.

Your Price $334.00 USD
Availability 5 Days
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 380260 Autoranging Digital Megohmmeter

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 380260 Autoranging Digital Megohmmeter

Extech 380260 Offers

Features

  • Low resistance, continuity and AC/DC voltage measurement functions
  • Dual display of insulation resistance and test voltage output
  • 250 V, 500 V, and 1000 V test voltages
  • Insulation resistance to 2000 MΩ
  • Lo Ω function for testing connections
  • Automatic discharge at the end of test
  • Backlit super large display with data hold to freeze displayed reading
  • Power lock on function for hands-free operation
  • Protective holster with stand
  • Auto power-off

Extech 380260 Specifications

Insulation Resistance 200 MΩ, 2000 MΩ
Basic Accuracy ±3%
Insulation Test Voltages 250 V, 500 V, 1000 V
Power Supply 6 x AA batteries
Dimensions 7.8 x 3.6 x 1.9" (200 x 92 x 50 mm)
Weight 24.6 oz (700 g)
Click here for complete specifications on the Extech 380260

What's included with the Extech 380260

  • Digital Megohmmeter
  • Heavy Duty Test Leads
  • Alligator Clip
  • Hanging Strap
  • Protective Carrying Case
  • 6 x AA Batteries
