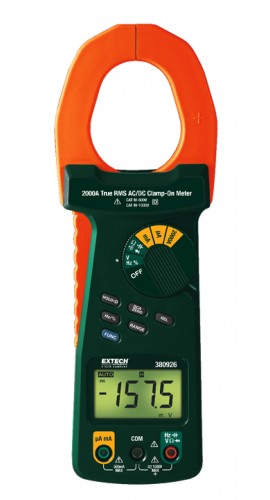

Rated category IV, 2000-Amp, this TRMS AC/DC clamp meter features full-range multimeter functions with high resolution to 0.1µA/0.1mV. In addition, its rugged 2" (52 mm) jaw accommodates two 500 MCM cables.
Rated category IV, 2000-Amp, this TRMS AC/DC clamp meter features full-range multimeter functions with high resolution to 0.1µA/0.1mV. In addition, its rugged 2" (52 mm) jaw accommodates two 500 MCM cables.
A built-in full-function DMM can measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, diode and continuity. Measurements are displayed on the large 4000 count backlit display for easy viewing in dimly lit areas. Additional features include DCA push button zero, Data Hold, and Relative function.
Features
Full function DMM includes AC/DC voltage and current, resistance, capacitance, frequency, duty dycle, diode and continuity
Current measurements to 2000A through the clamp and 400mA via test leads with resolution of 0.1µA
Basic DCV accuracy of 1% with 0.1mV resolution
Push button zero adjust improves DC accuracy
Data Hold and Relative functions
Large 4000 count backlit display for easy viewing in dimly lit areas
2" (50mm) jaws accomodate one 2000MCM or two 500MCM cables
Heavy duty ABS case with built-in stand and thumb control function switch
Applications
| AC/DC Current Range (Clamp) | 400A, 2000A |
| AC/DC Current Range (DMM) | 400µA, 4000µA, 40mA, 400mA |
| AC Voltage Range | 4V, 40V, 400V, 1000V |
| DC Voltage Range | 400mV, 4.0V, 40V, 400V, 1000V |
| Resistance Range | 400Ω, 4.0kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ |
| Capacitance Range | 50nF, 500nF, 5.0µF, 50µF |
| Frequency Range | 5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 100kHz |
| Duty Cycle Range | 1% to 99% |
| Diode Check | yes |
| Continuity | yes |
| Dimensions | 10 x 2.9 x 1.5" (255 x 73 x 38mm) |
| Weight | 14oz (380g) |
