Featuring a small diameter elongated jaw, this mini AC/DC clamp meter fits into tight spaces.
Featuring a small diameter elongated jaw, this mini AC/DC clamp meter fits into tight spaces.

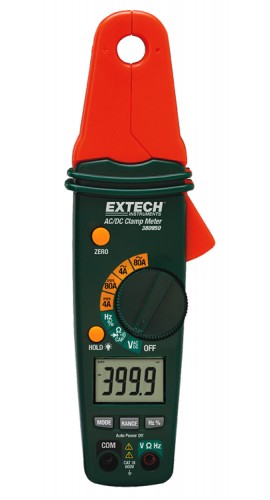

The 380950 has an extra-small diameter jaw designed to reach into very small areas while providing a 1 mA resolution and very low-current sensitivity. This amp clamp performs essential troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work as well as residential, automotive, fleet maintenance, marine, and motorcycle electrical repair.
Features
Applications
| Current Range | AC: 4.000 A, 80.0 A DC: 4 A, 80 A |
| AC/DC Voltage Range | 400 mV to 600 V |
| Resistance Range | 400Ω to 40MΩ |
| Frequency Range | 5 Hz to 10 MHz |
| Duty Cycle Range | 5 to 99.9% |
| Dimensions | 8.3 x 2.8 x 1.5" (210 x 70 x 37 mm) |
| Weight | 7 oz (200 g) |
Click on a category to view a selection of compatible accessories with the Extech 380950 Mini AC/DC Clamp Meter, 80 A.
| Current Range | AC: 4.000 A, 80.0 A DC: 4 A, 80 A |
| AC/DC Voltage Range | 400 mV to 600 V |
| Resistance Range | 400Ω to 40MΩ |
| Frequency Range | 5 Hz to 10 MHz |
| Duty Cycle Range | 5 to 99.9% |
| Dimensions | 8.3 x 2.8 x 1.5" (210 x 70 x 37 mm) |
| Weight | 7 oz (200 g) |
Click on a category to view a selection of compatible accessories with the Extech 380950 Mini AC/DC Clamp Meter, 80 A.
