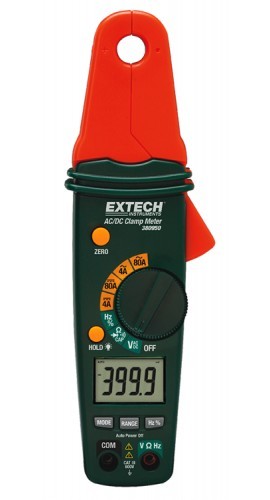

Designed for current measurements in small areas up to 80 A AC/DC, this mini clamp meter features a maximum resolution of 1 mA. Complete with a 4000-count display and a jaw that opens to 0.5", the meter is ideal for applications such as electrical, HVAC/R, and telecom. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Designed for current measurements in small areas up to 80 A AC/DC, this mini clamp meter features a maximum resolution of 1 mA. Complete with a 4000-count display and a jaw that opens to 0.5", the meter is ideal for applications such as electrical, HVAC/R, and telecom. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Features
| AC Current | 4.000 A, 80.0 A |
| DC Current | 4 A, 80 A |
| Basic ACA Accuracy (% rdg) | ±2.5% |
| AC Voltage (Max Res.) | 600 V (0.1 mV) |
| DC Voltage (Max Res.) | 600 V (0.1 mV) |
| Resistance (Max Res.) | 40 MΩ (0.1 Ω) |
| Frequency (Max Res.) | 10 MHz (0.001 Hz) |
| Diode/Continuity | Continuity |
| Data Hold | Yes |
| Dimensions | 8.2 x 2.7 x 1.4" (210 x 70 x 37 mm) |
| AC Current | 4.000 A, 80.0 A |
| DC Current | 4 A, 80 A |
| Basic ACA Accuracy (% rdg) | ±2.5% |
| AC Voltage (Max Res.) | 600 V (0.1 mV) |
| DC Voltage (Max Res.) | 600 V (0.1 mV) |
| Resistance (Max Res.) | 40 MΩ (0.1 Ω) |
| Frequency (Max Res.) | 10 MHz (0.001 Hz) |
| Diode/Continuity | Continuity |
| Data Hold | Yes |
| Dimensions | 8.2 x 2.7 x 1.4" (210 x 70 x 37 mm) |
