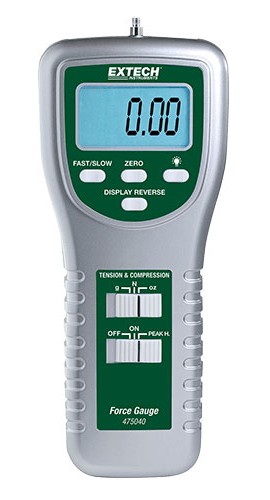

Perform push/pull measurements in ounces, grams, and Newtons with this high-capacity force gauge, and easily view on its 5-digit LCD with reversible display feature to match viewing angle. In addition, this force gauge is ideal for applications in electronics, automotive, chemical, plastics, and machinery industries. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Perform push/pull measurements in ounces, grams, and Newtons with this high-capacity force gauge, and easily view on its 5-digit LCD with reversible display feature to match viewing angle. In addition, this force gauge is ideal for applications in electronics, automotive, chemical, plastics, and machinery industries. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Features
Applications
Ideal for a wide variety of applications in the electronics, automotive, chemical, plastics, and machinery industries.
| Range | 176 oz, 5000 g, 49 N |
| Accuracy (73°F [23°C]) | ±(0.4% + 1 digit) |
| Resolution | 0.05 oz, 1 g, 0.01 N |
| Overload Capacity | 10 kg |
| Update Rate | Fast mode: 0.2 seconds Slow mode: 0.6 seconds |
| Full Scale Deflection | 2.00 mm |
| Transducer Type | Load cell |
| Peak Hold | Freezes maximum reading on display |
| Display | 5 digits, 0.4" (10 mm) LCD display |
| Power Supply | 6 x 1.5 V AA (UM-3) batteries or DC 9 V adapter (not included) |
| Dimensions | 8.9 x 3.3 x 1.5" (227 x 83 x 39 mm) |
| Weight | 1.2 lbs (551 g) |
